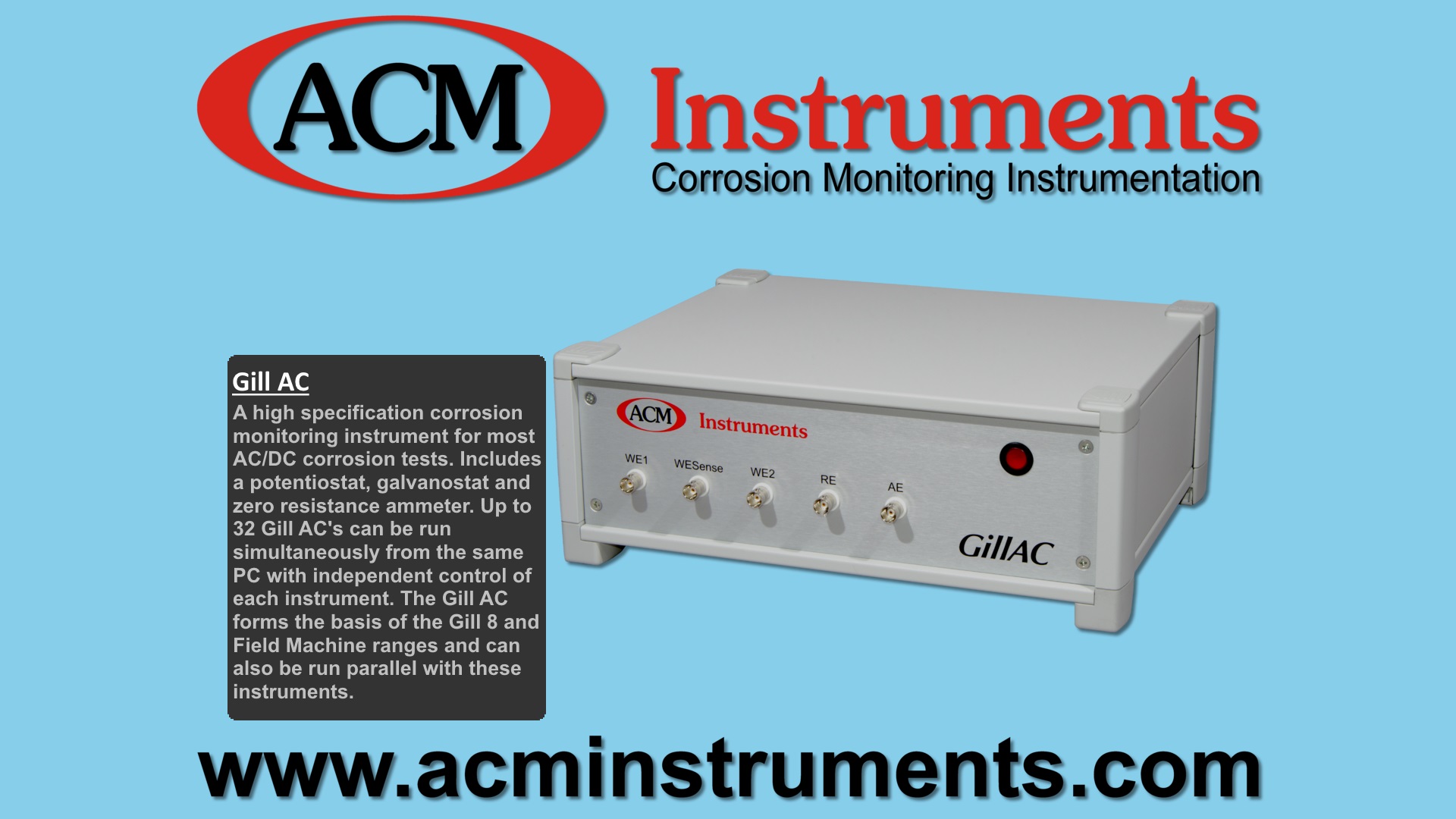

A high specification corrosion monitoring instrument for most AC/DC corrosion tests. Includes a potentiostat, galvanostat and zero resistance ammeter. Up to 32 Gill AC's can be run simultaneously from the same PC with independent control of each instrument. The Gill AC forms the basis of the Gill 8 and Field Machine ranges and can also be run parallel with these instruments.

Click Gill AC for more information.

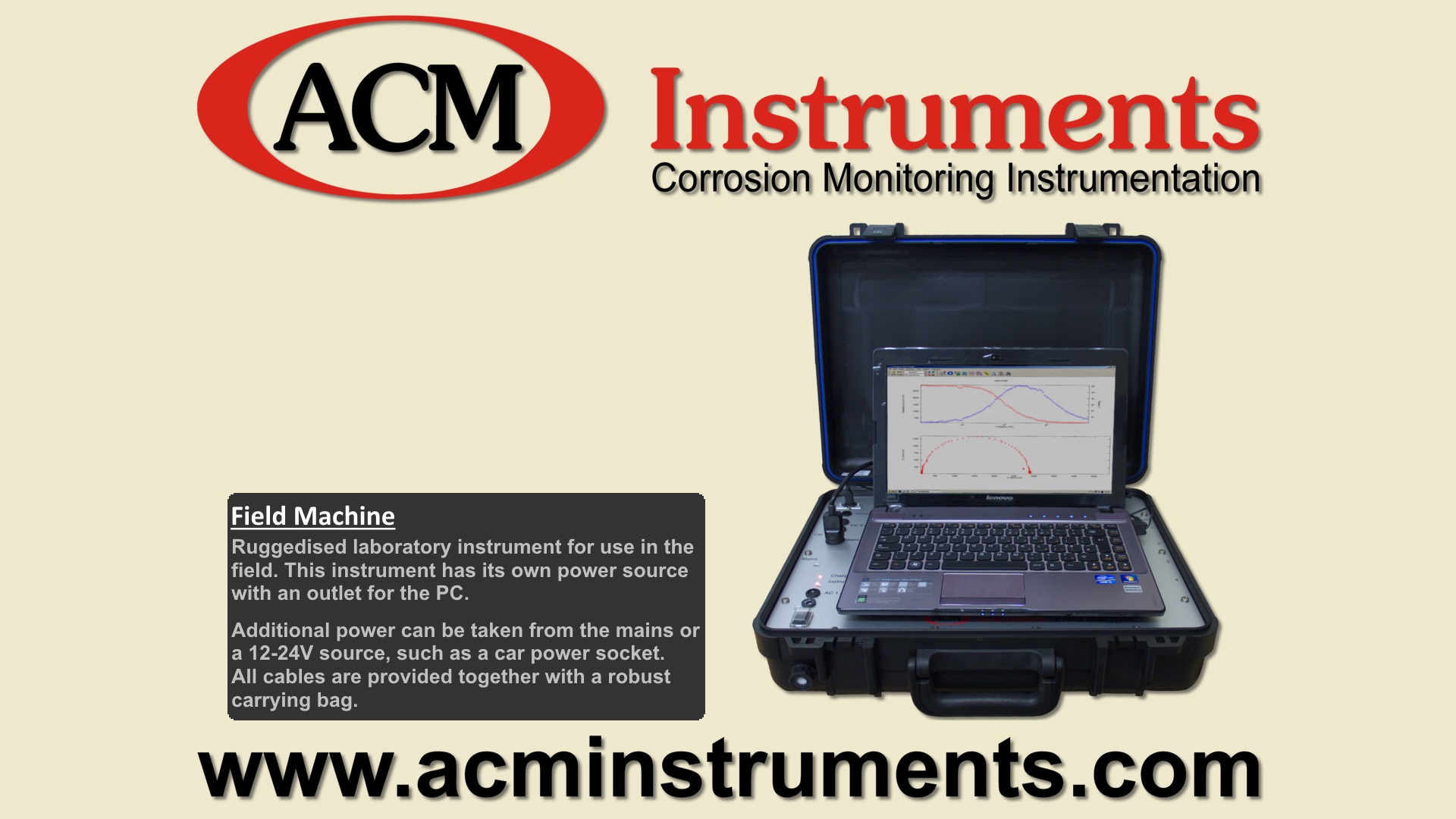

Ruggedised laboratory instrument for use in the field. This instrument has its own power source with an outlet for the PC.
Additional power can be taken from the mains or a 12-24V source, such as a car power socket. All cables are provided together with a robust carrying bag.

Click Field Machine for more information.

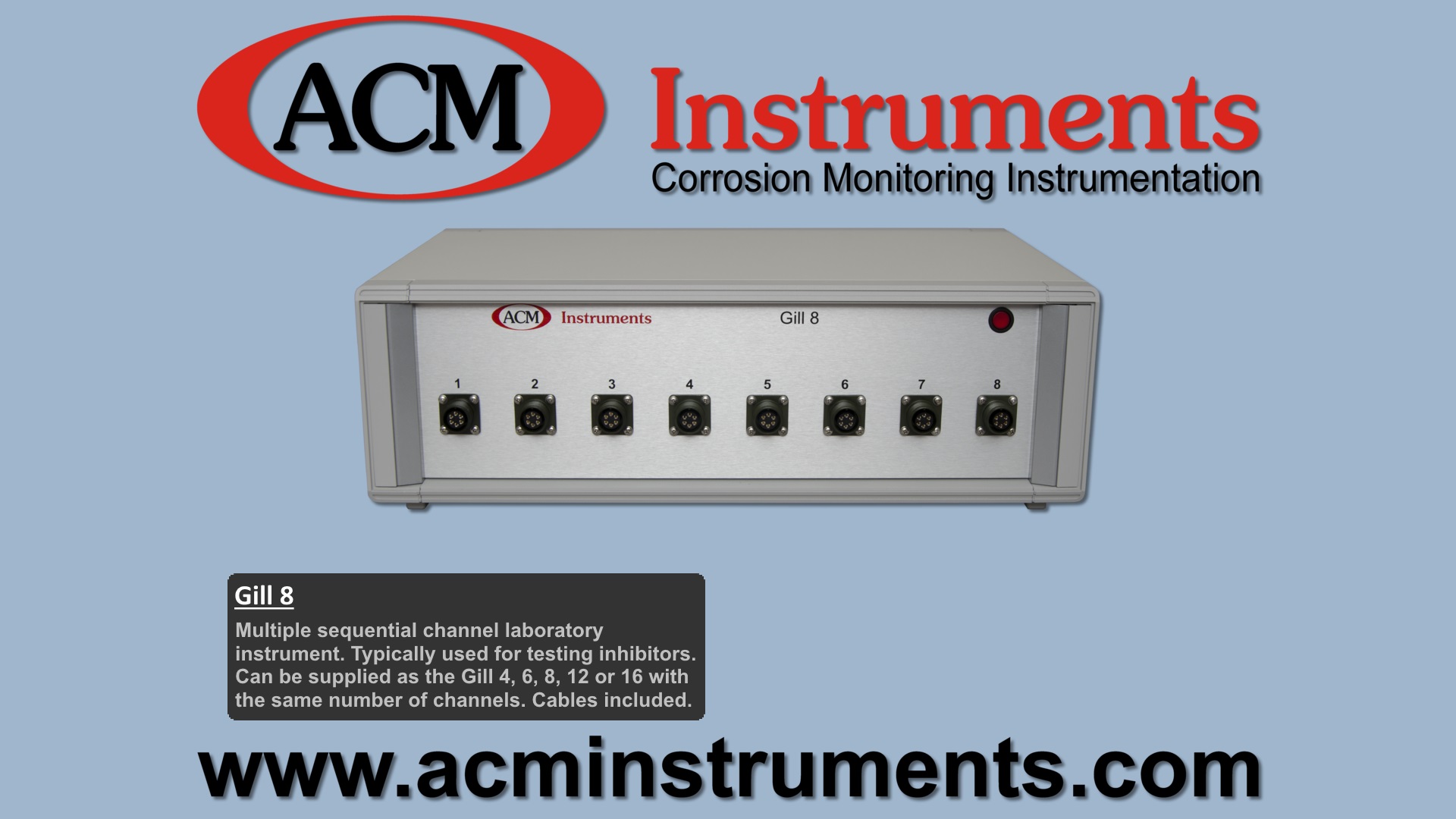

Multiple sequential channel laboratory instrument. Typically used for testing inhibitors. Can be supplied as the Gill 4, 6, 8, 12 or 16 with the same number of channels. Cables included.

Click Gill 8 for more information.

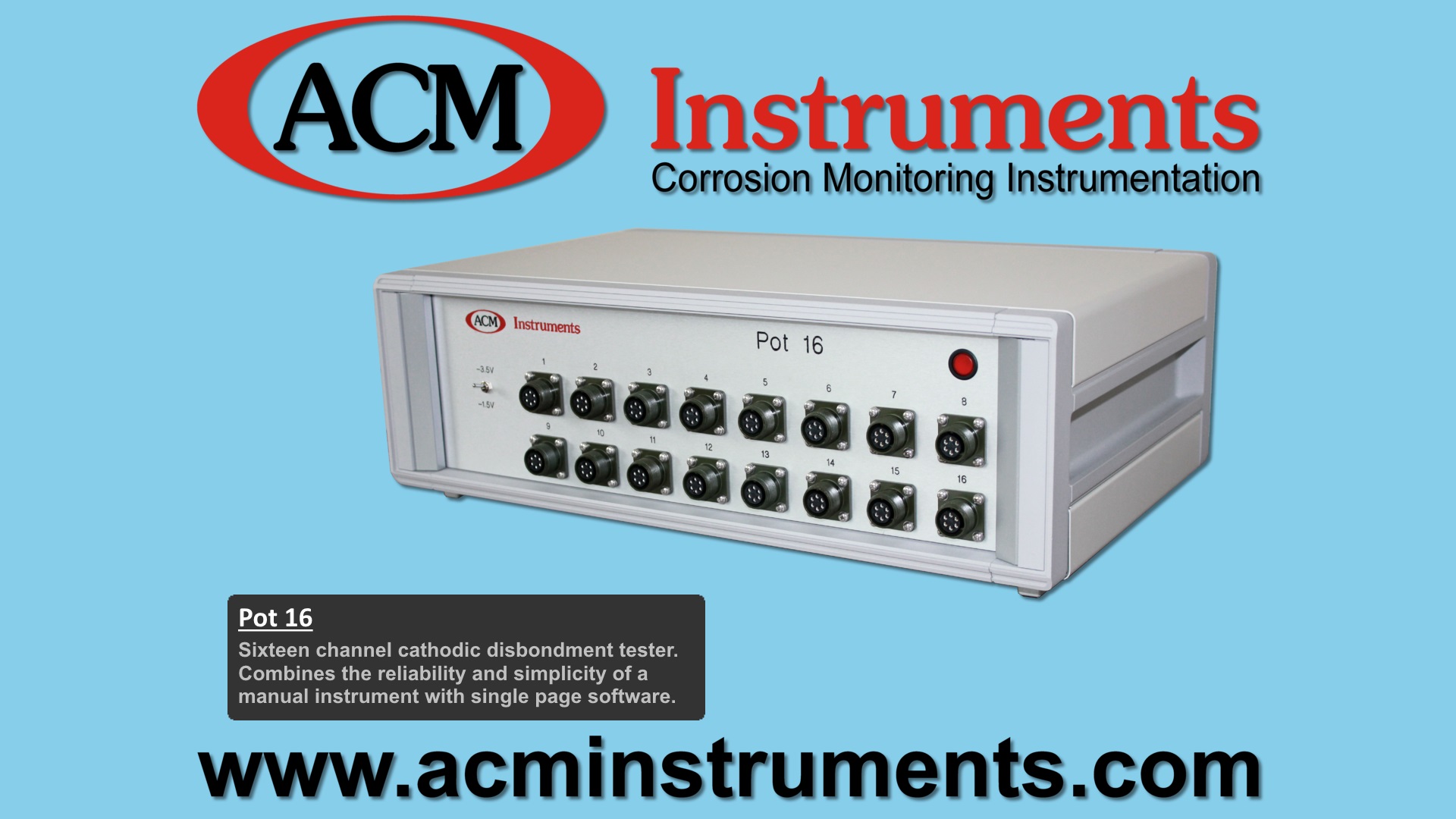

Sixteen channel cathodic disbondment tester. Combines the reliability and simplicity of a manual instrument with single page software.

Click Pot 16 for more information.

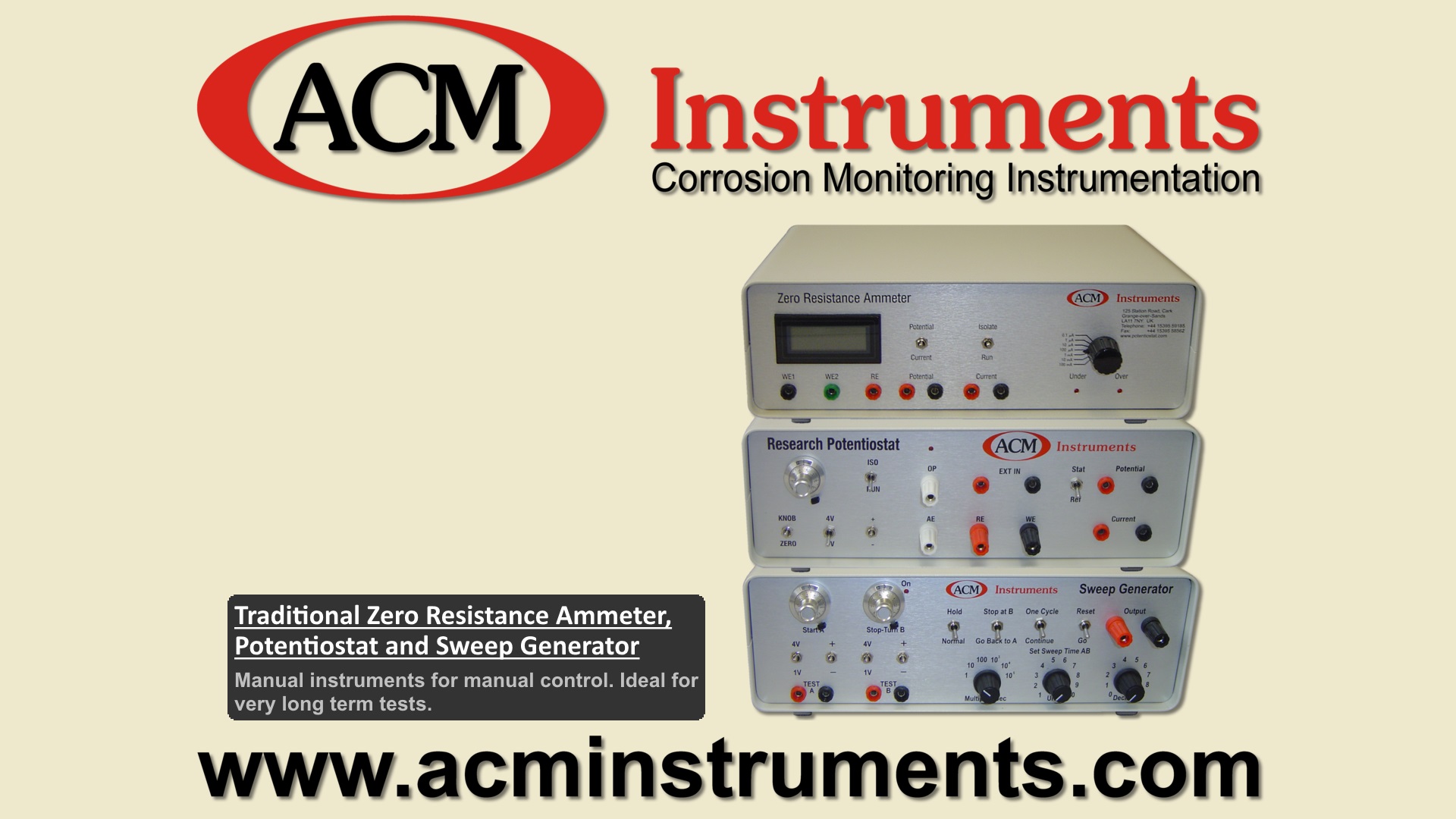

Traditional Zero Resistance Ammeter, Potentiostat and Sweep Generator

Manual instruments for manual control. Ideal for very long term tests.

Click Traditional Zero Resistance Ammeter, Potentiostat or Sweep Generator for more information.

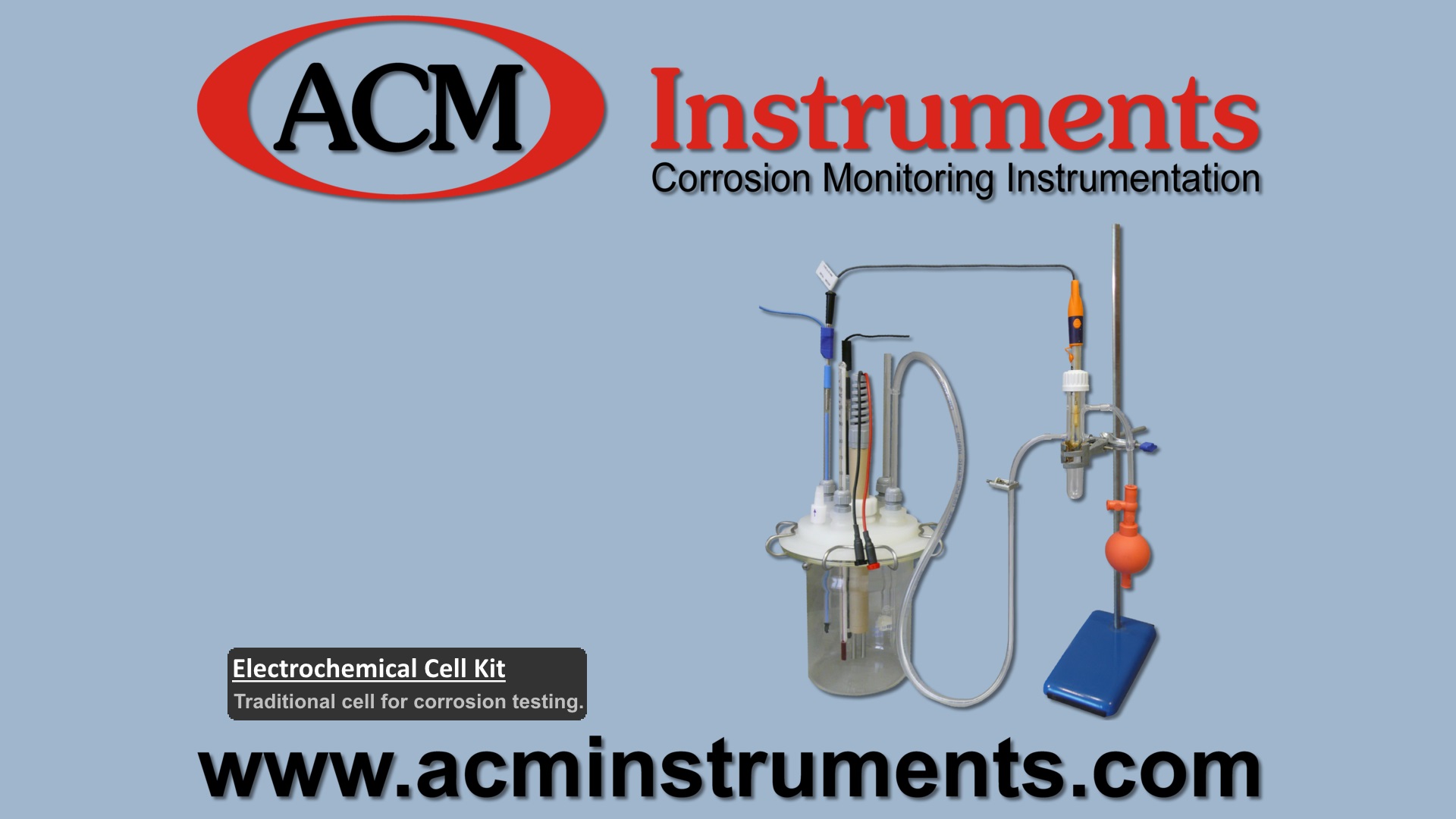

Traditional cell for corrosion testing.

Click Electrochemical cell kit for more information.

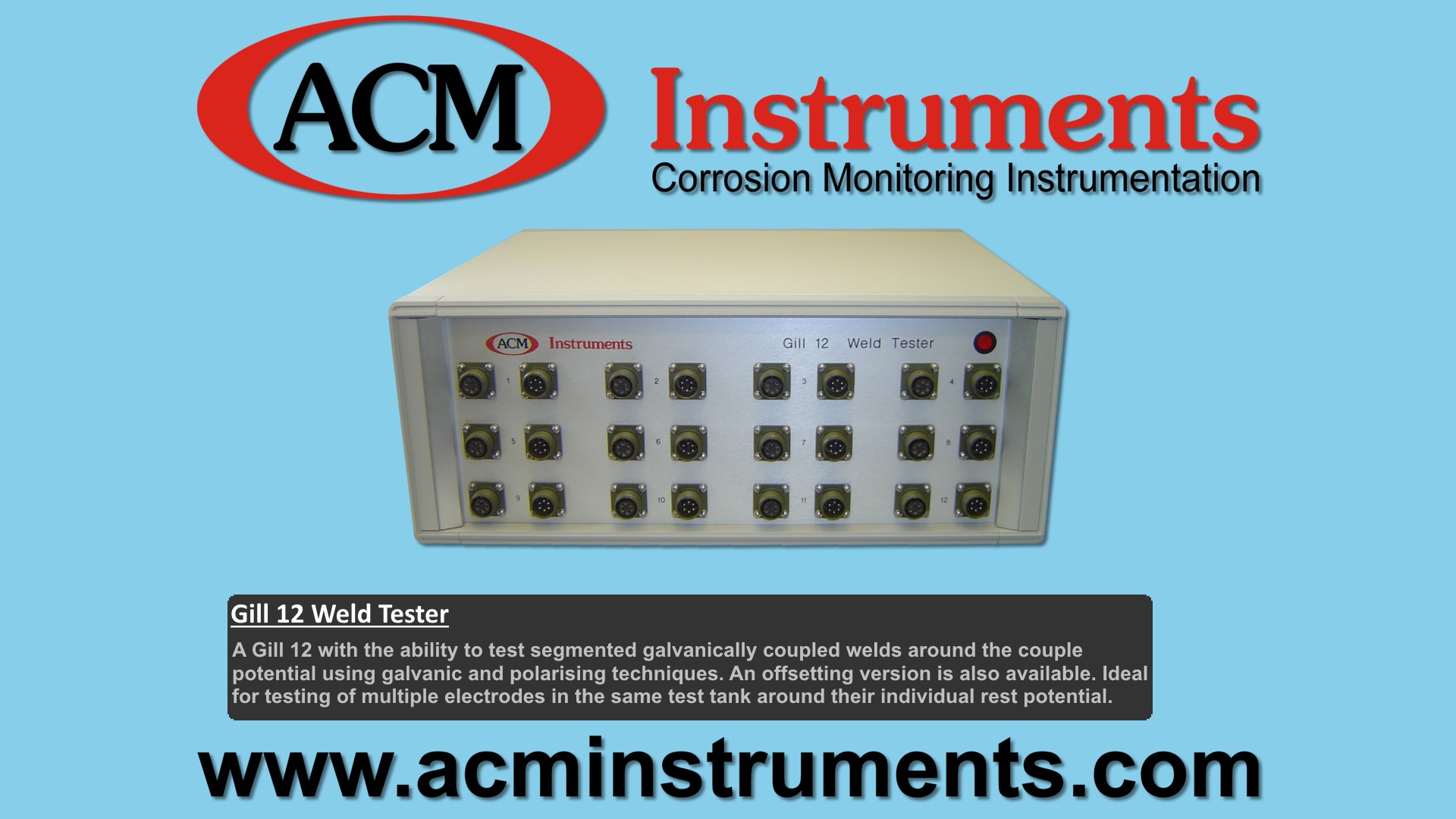

A Gill 12 with the ability to test segmented galvanically coupled welds around the couple potential using galvanic and polarising techniques. An offsetting version is also available. Ideal for testing of multiple electrodes in the same test tank around their individual rest potential.

Click Gill 12 Weld Tester for more information.

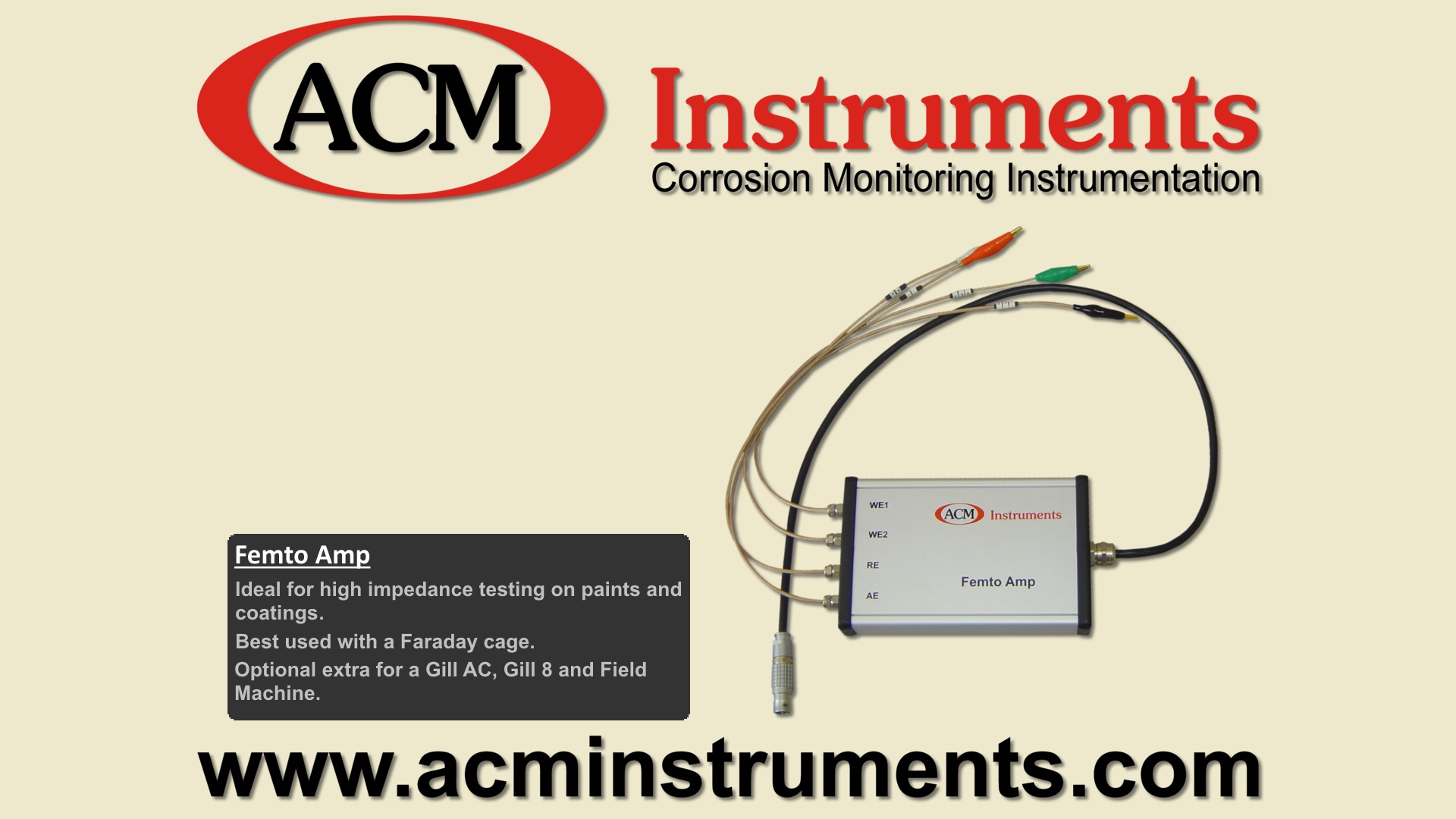

Ideal for high impedance testing on paints and coatings.
Best used with a Faraday cage
Optional extra for Gill AC, Gill 8 and Field Machine.

Click Femto Amp for more information.

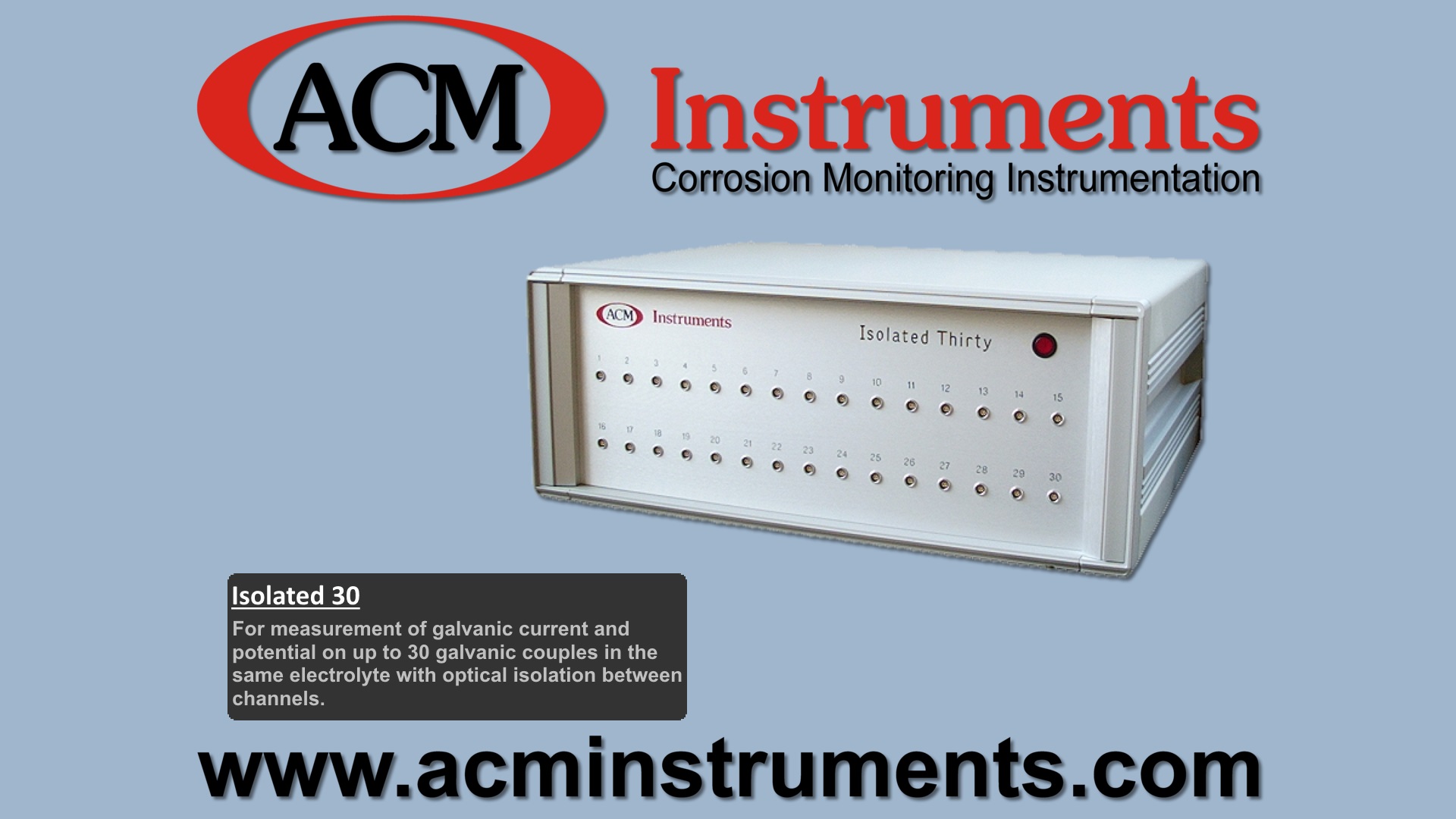

For measurement of galvanic current and potential on up to 30 galvanic couples in the same electrolyte with optical isolation between channels.

Click Isolated 30 for more information.

A traditional battery/mains powered LPR Meter and a bespoke LPR Meter for in situ long term monitoring in the field.

Click LPR Meter for more information.

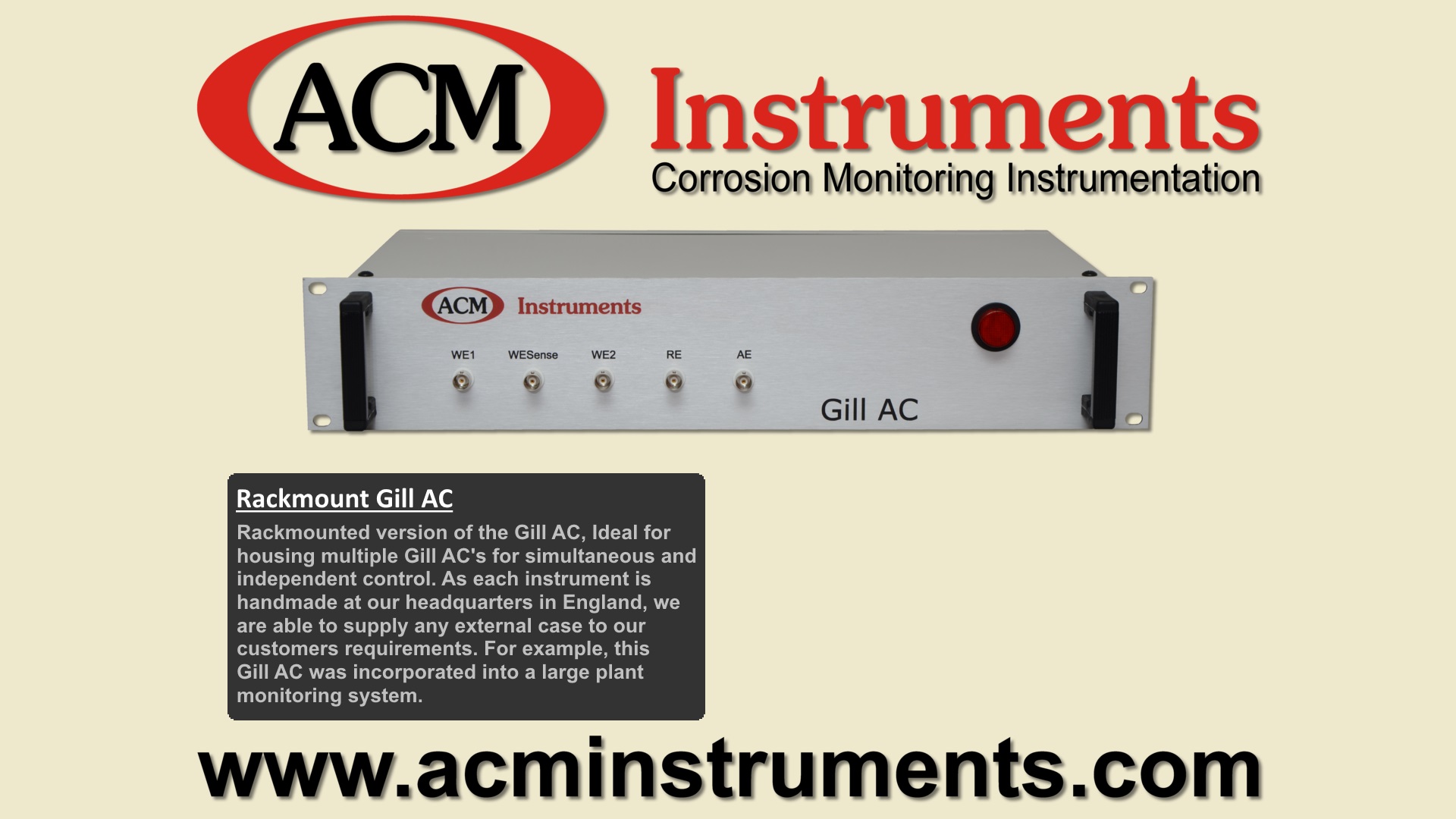

Rackmounted version of the Gill AC. Ideal for housing multiple Gill ACs for simultaneous and independent control. As each instrument is hand made at our headquarters in England, we are able to supply any external case to our customers requirements. For example, this Gill AC was incorporated into a large plant monitoring system.

Click Gill AC for more information.

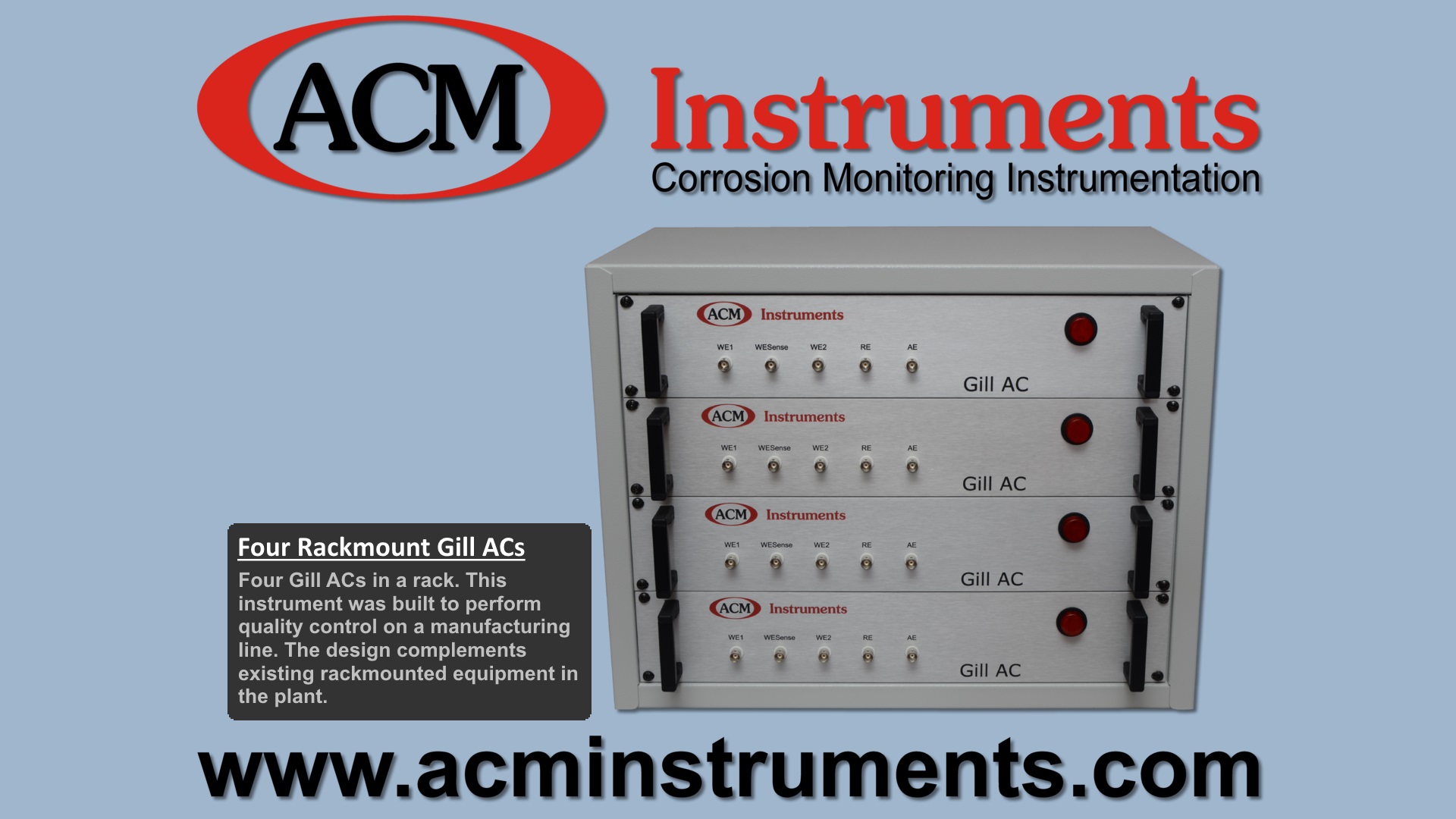

Four Gill ACs in a rack. This instrument was built to perform quality control on a manufacturing line. The design complements existing rackmounted equipment in the plant.

Click Gill AC for more information.

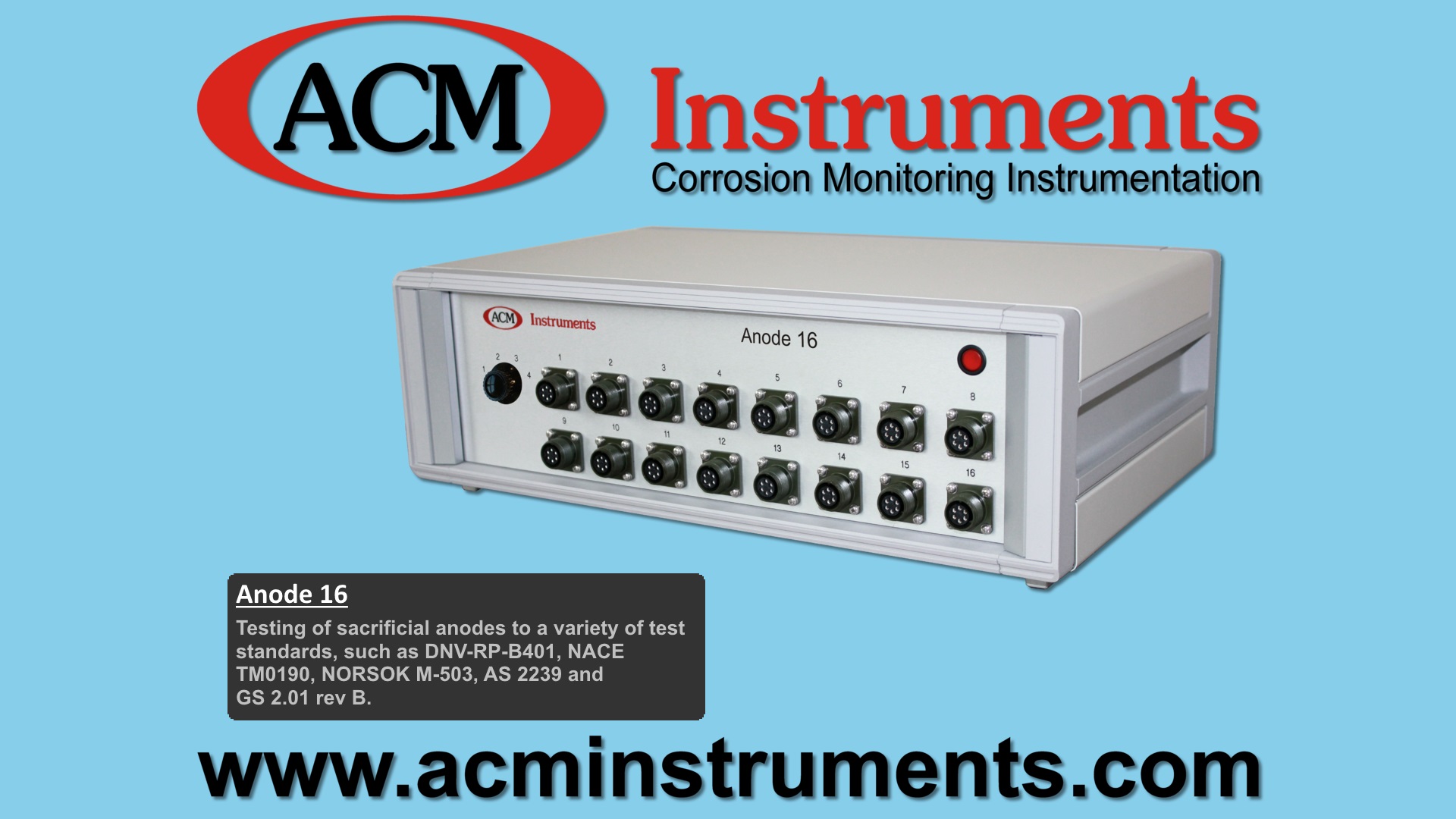

Testing of sacrificial anodes to a variety of test standards, such as DNV-RP-B401, NACE TM0190, NORSOK M-503, AS 2239 and GS 2.01 rev B.

Click Anode 16 for more information.

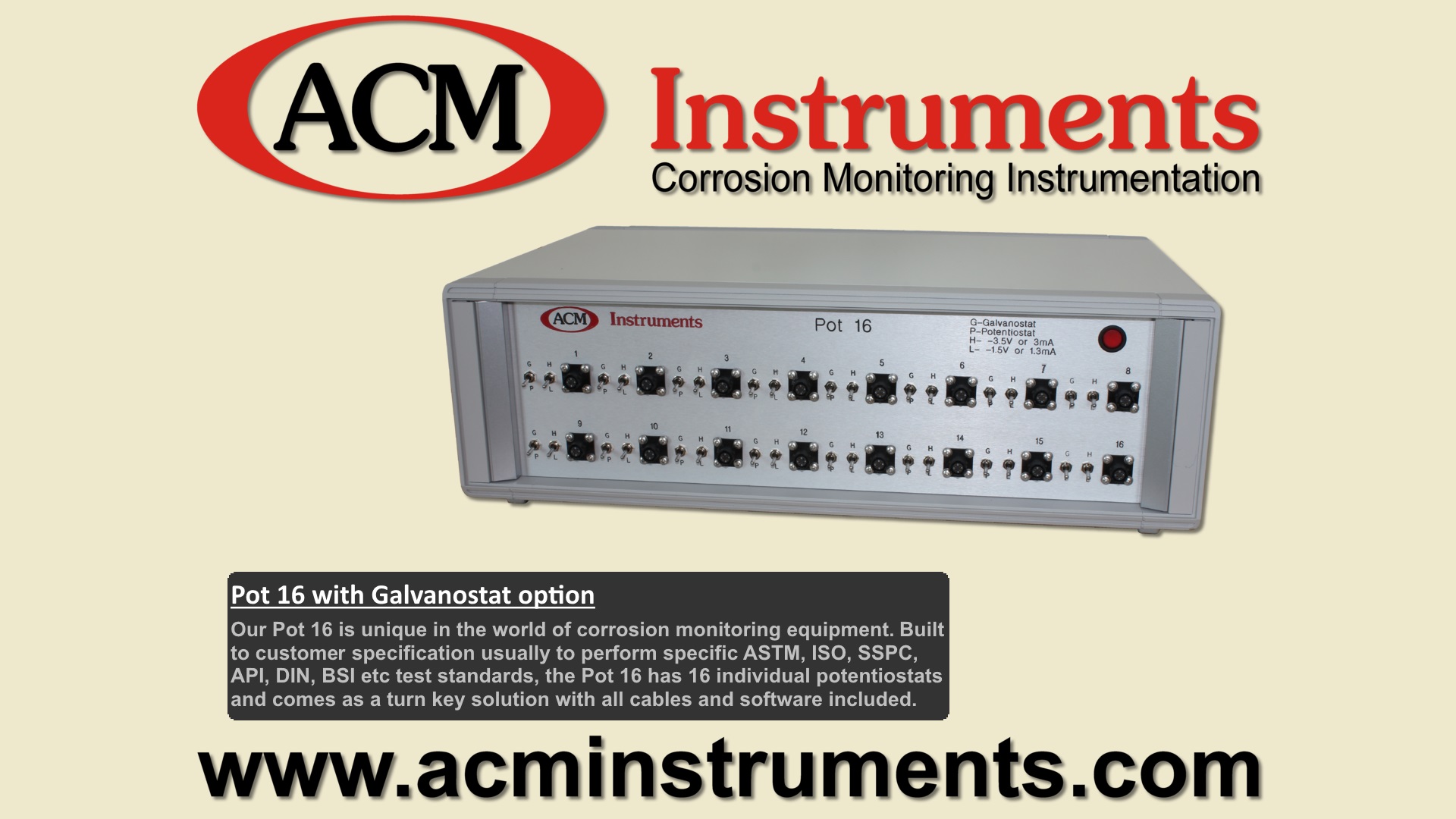

Our Pot 16 is unique in the world of corrosion monitoring equipment. Built to customer specification usually to perform specific ASTM, ISO, SSPC, API, DIN, BSI etc test standards, the Pot 16 has 16 individual potentiostats and comes as a turn key solution with all cables and software included.

Click Pot 16 with Galvanostat for more information.

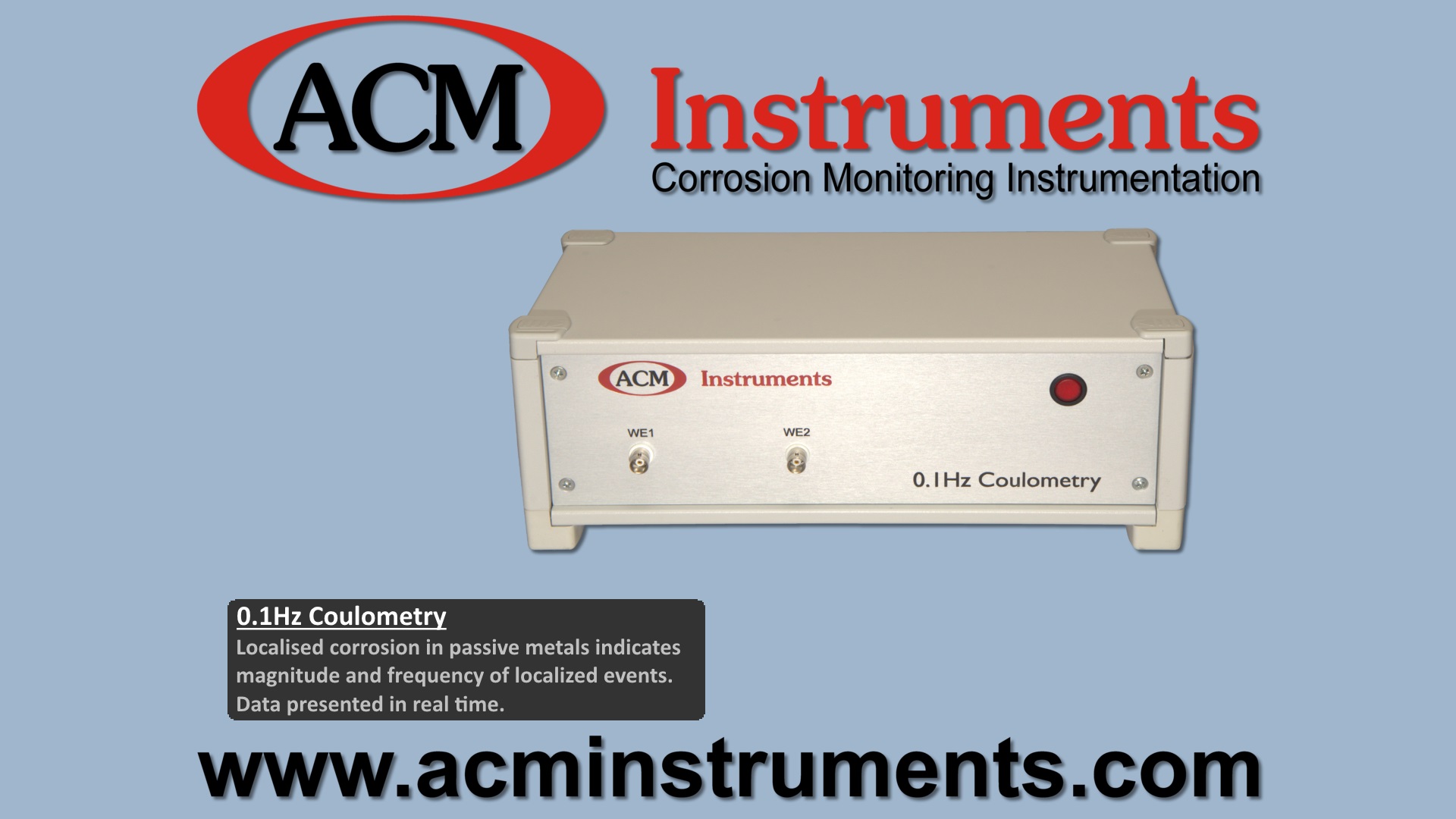

Localised corrosion in passive metals indicates magnitude and frequency of localised events. Data presented in real time.

Click 0.1Hz Coulometry for more information.

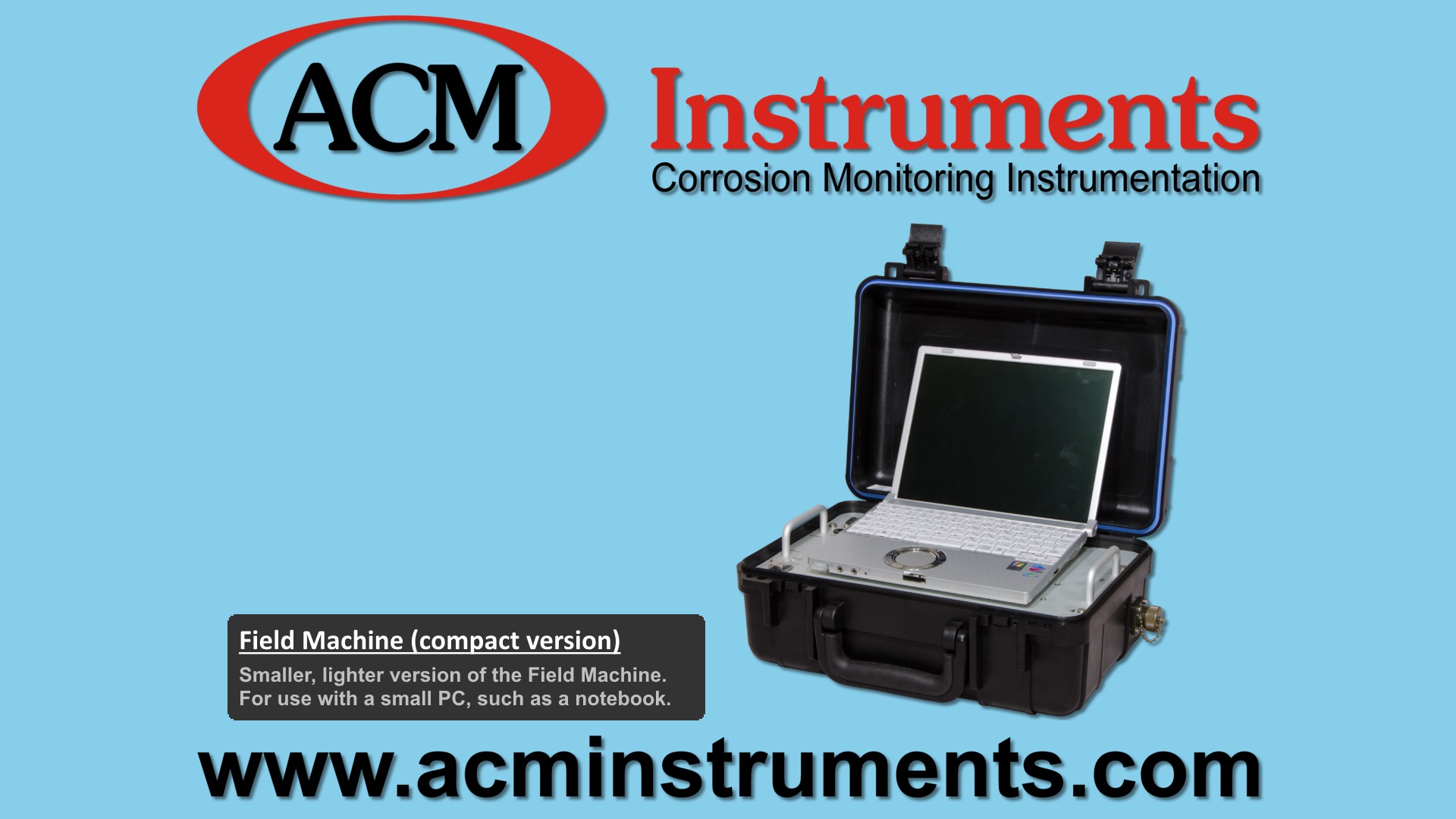

Smaller, lighter version of the Field Machine.
For use with a small PC, such as a notebook.

Click Compact Field Machine for more information.

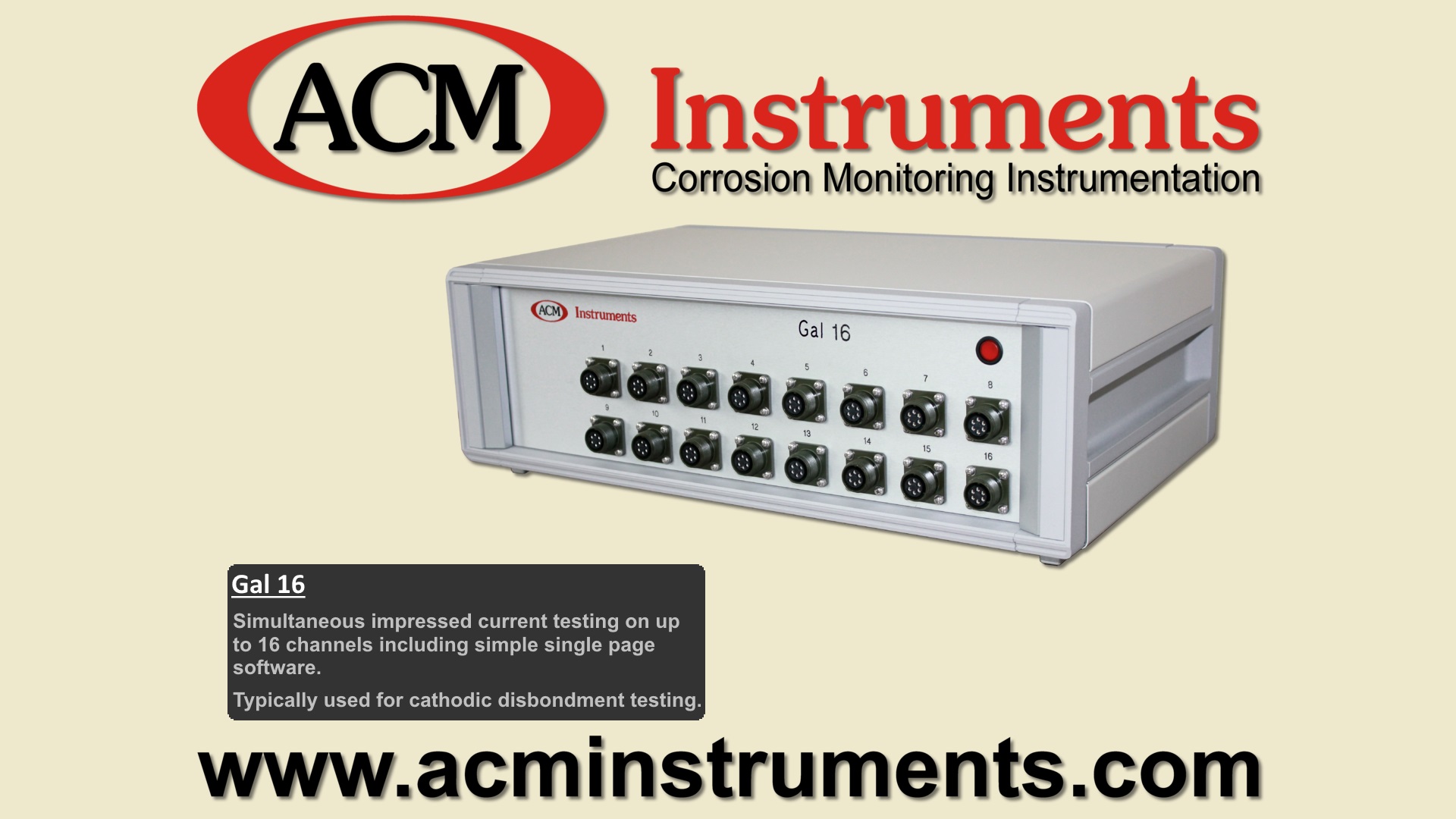

Simultaneous impressed current testing on up to 16 channels including simple single page software.
Typically used for cathodic disbondment testing.

Click Gal 16 for more information.

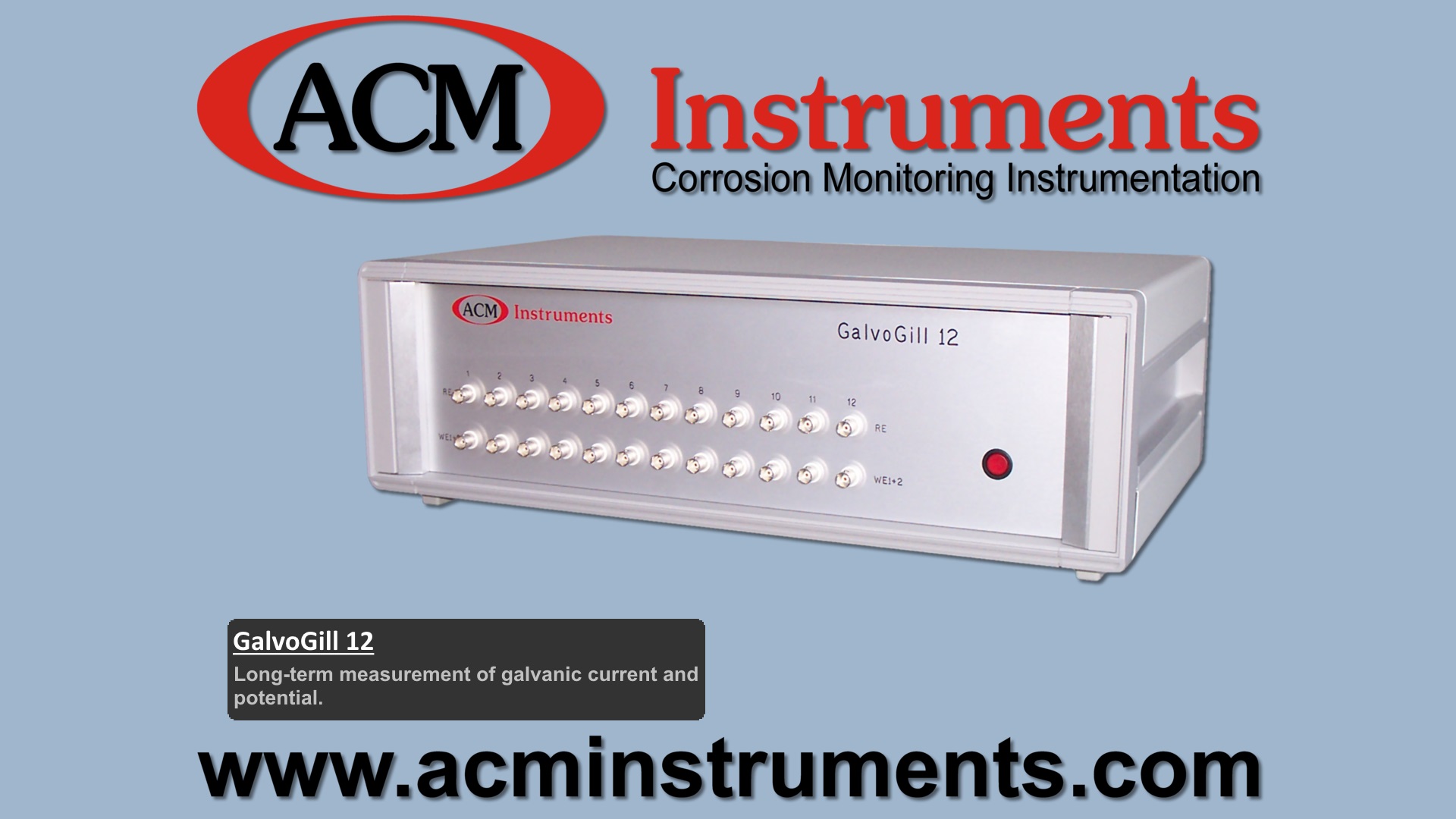

Long term measurement of galvanic current and potential.

Click GalvoGill 12 for more information.

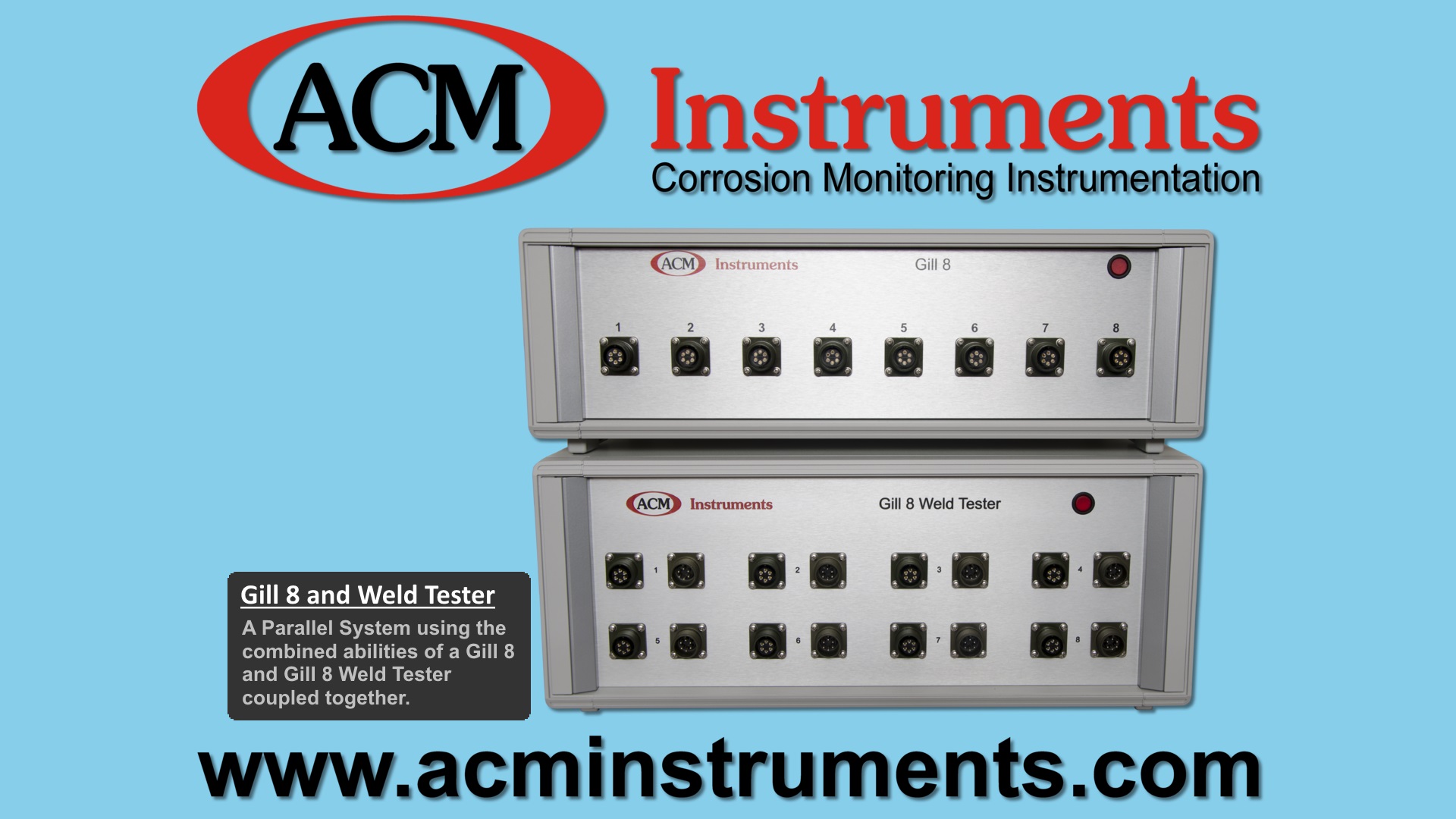

A Parallel System using the combined abilities of a Gill 8 and Gill 8 Weld Tester coupled together.

Click Gill 8, Gill 8 Weld Tester or Parallel Systems for more information.

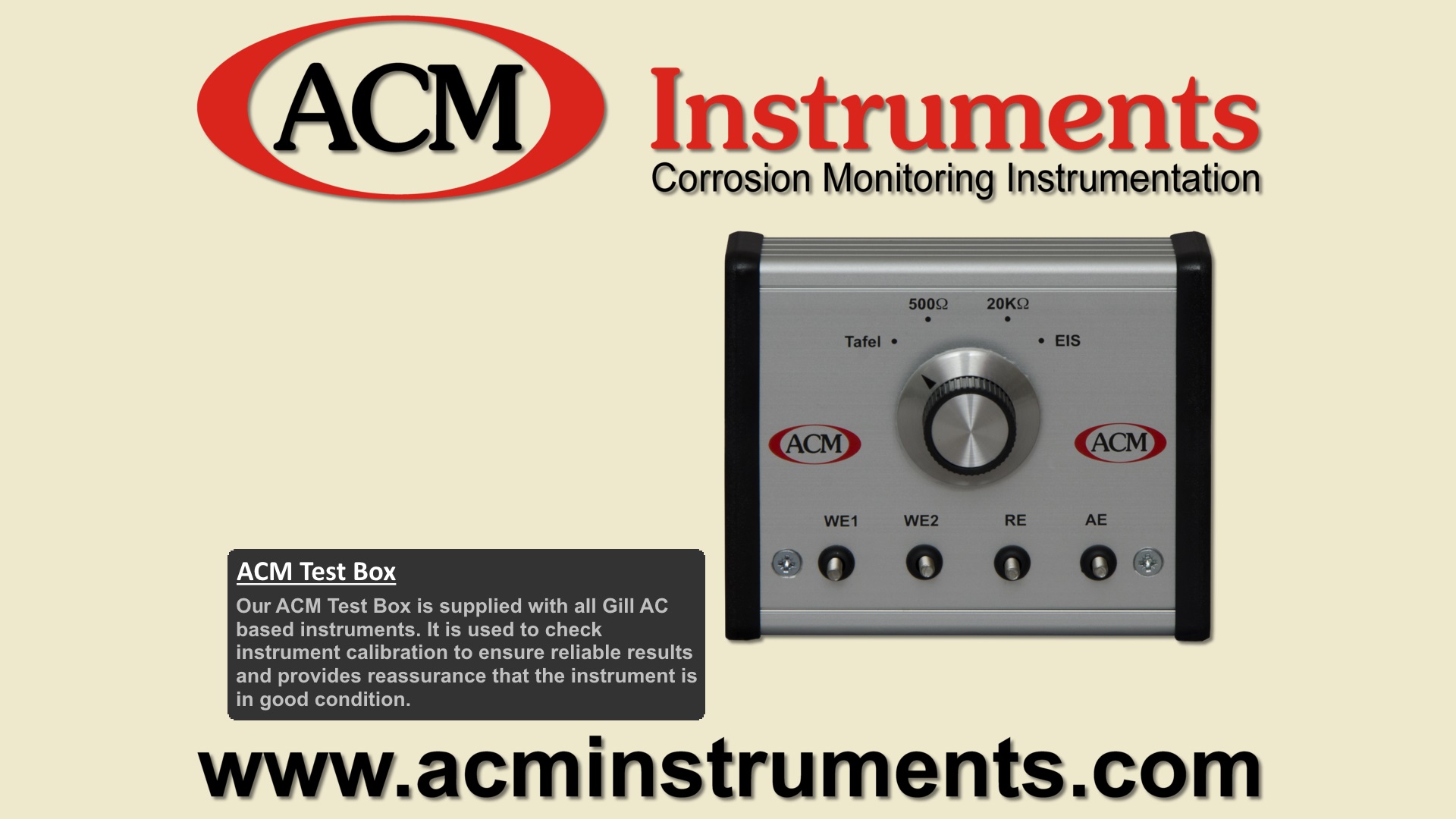

Our ACM Test Box is supplied with all Gill AC based instruments. It is used to check instrument calibration to ensure reliable results and provides reassurance that the instrument is in good condition.

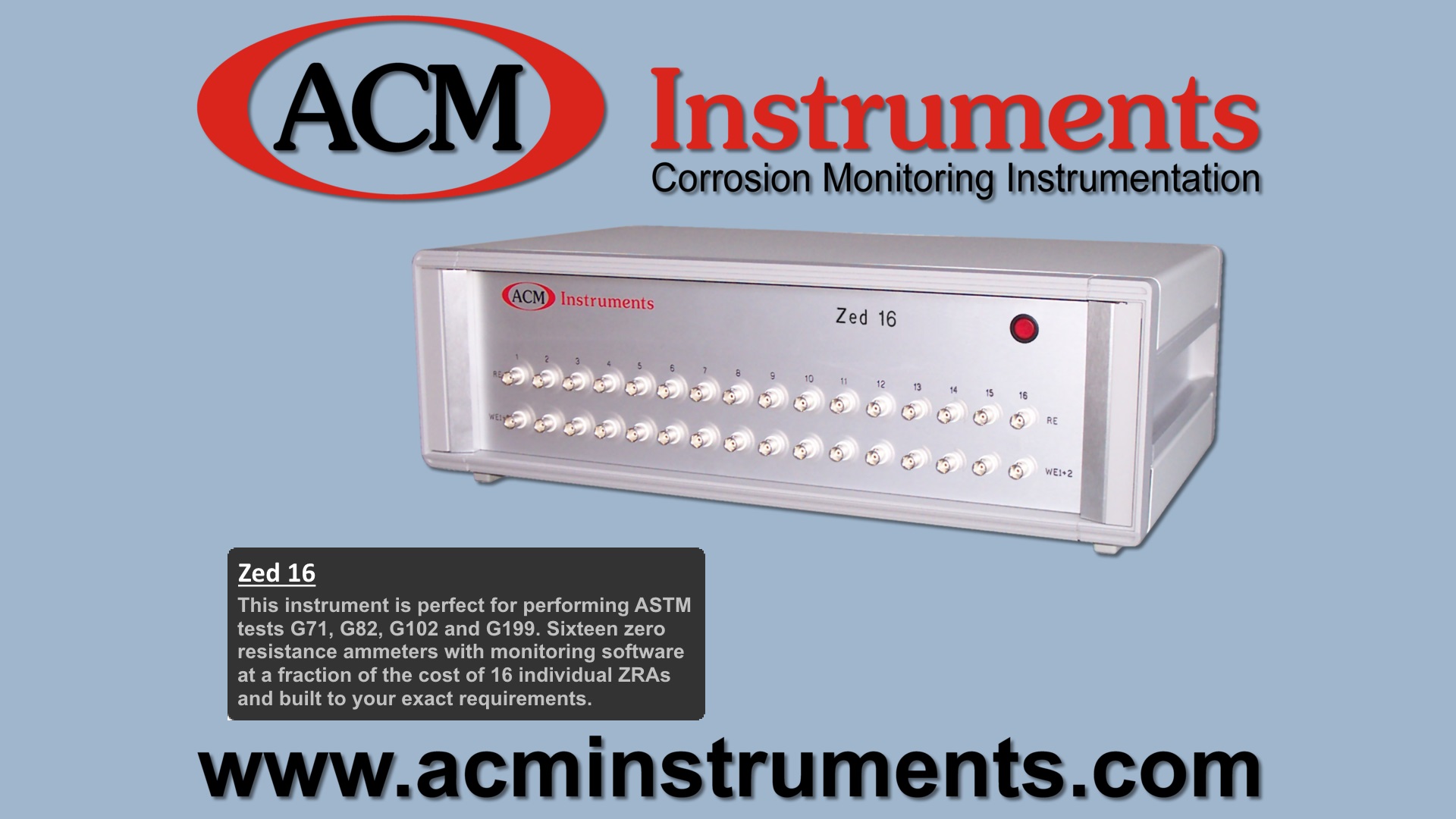

This instrument is perfect for performing ASTM tests G71, G82, G102 and G199. Sixteen zero resistance ammeters with monitoring software at a fraction of the cost of 16 individual ZRA's and built to your exact requirements.

Click Zed 16 for more information.

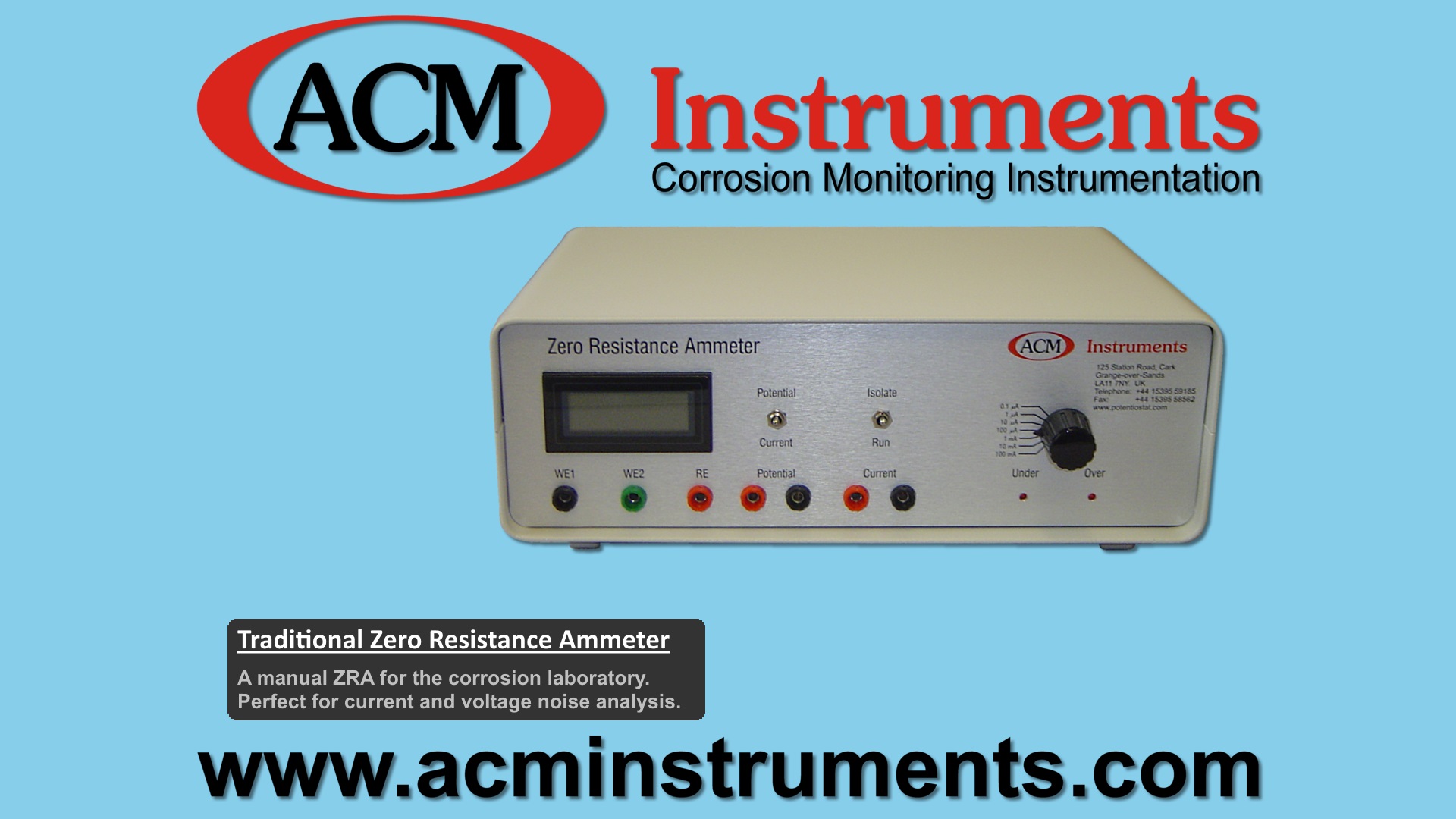

A manual ZRA for the corrosion laboratory. Perfect for current and voltage noise analysis.

Click Traditional Zero Resistance Ammeter for more information.

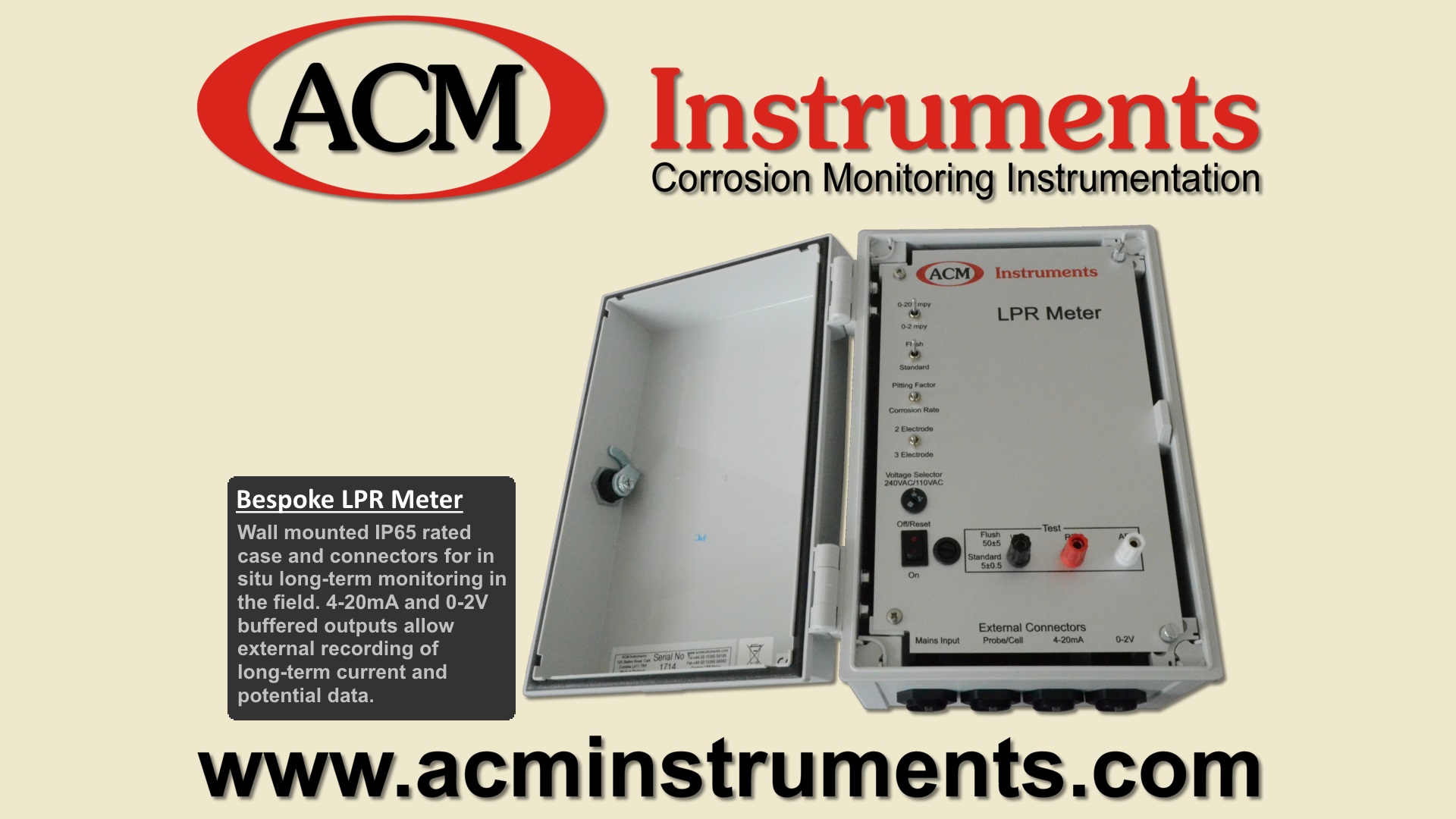

Wall mounted IP65 rated case and connectors for in situ long term monitoring in the field. 4-20mA and 0-2V buffered outputs allow external recording of long term current and potential data.

Click LPR Meter for more information.

Ruggedised laboratory instruments for use in the field.

Click Field Machine for more information.

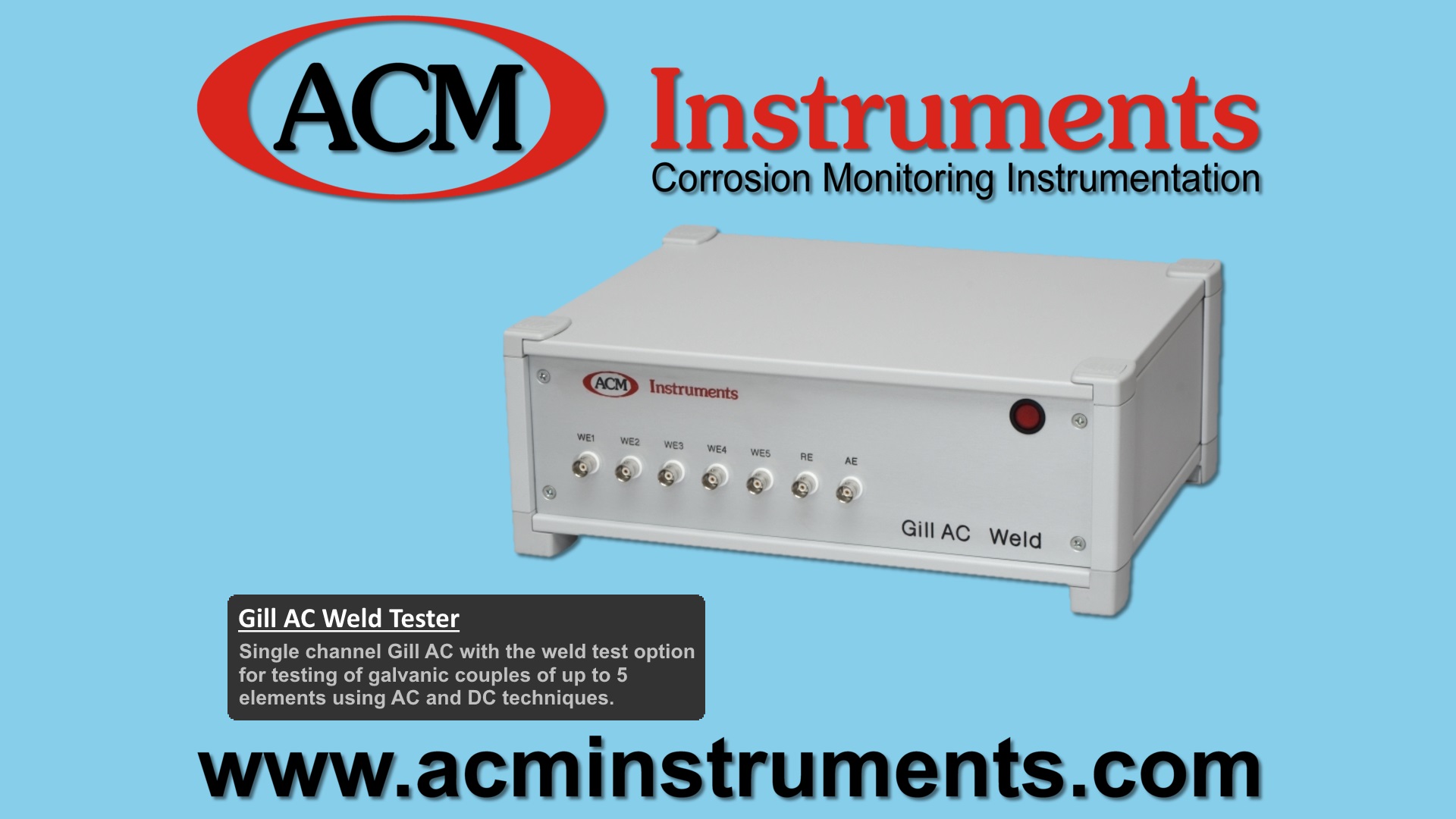

Single channel Gill AC with the weld test option for testing of galvanic couples of up to 5 elements using AC and DC techniques.

Click Gill AC Weld Tester for more details.

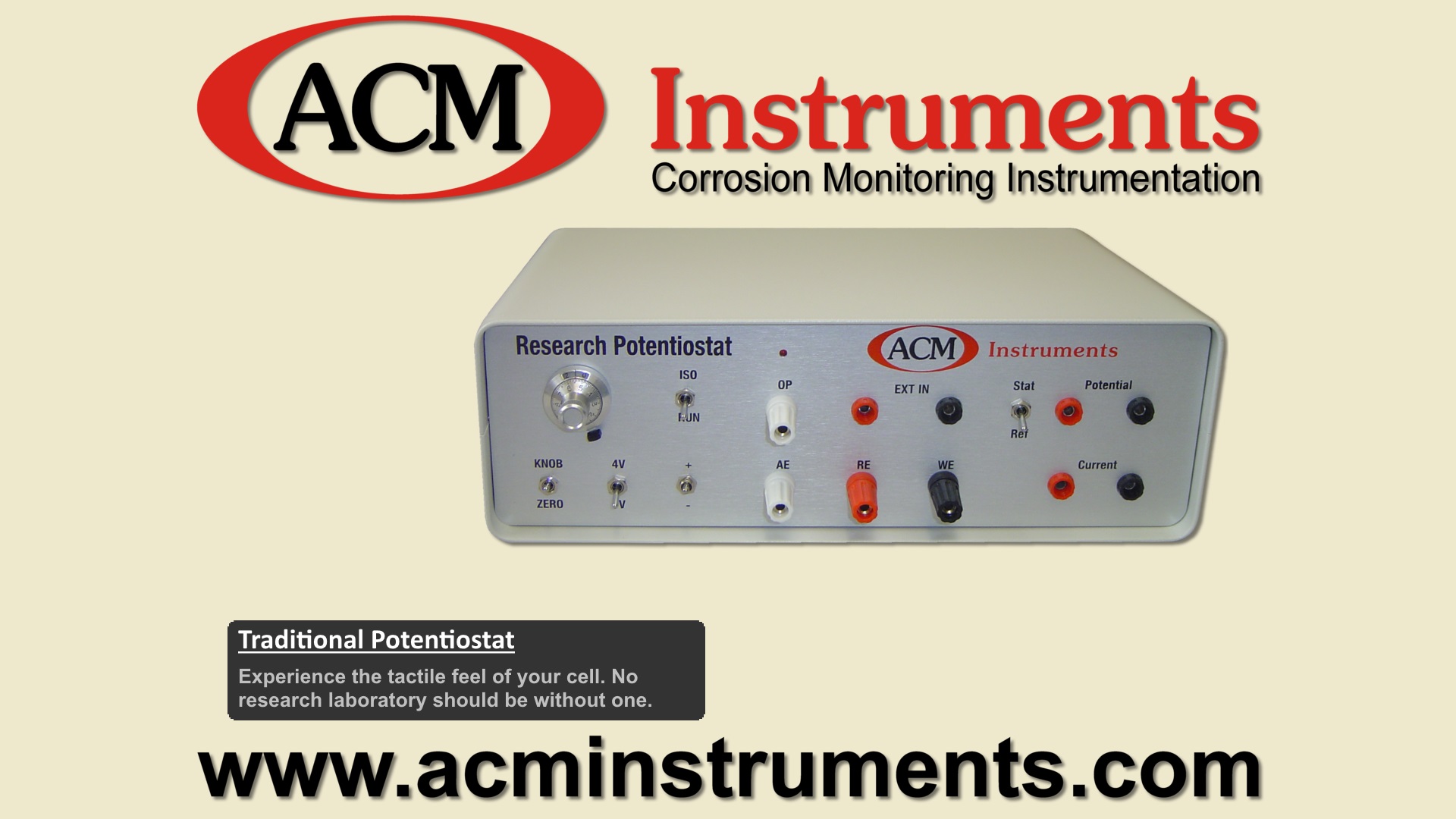

Experience the tactile feel of your cell. No research laboratory should be without one.

Click Traditional Potentiostat for more information.

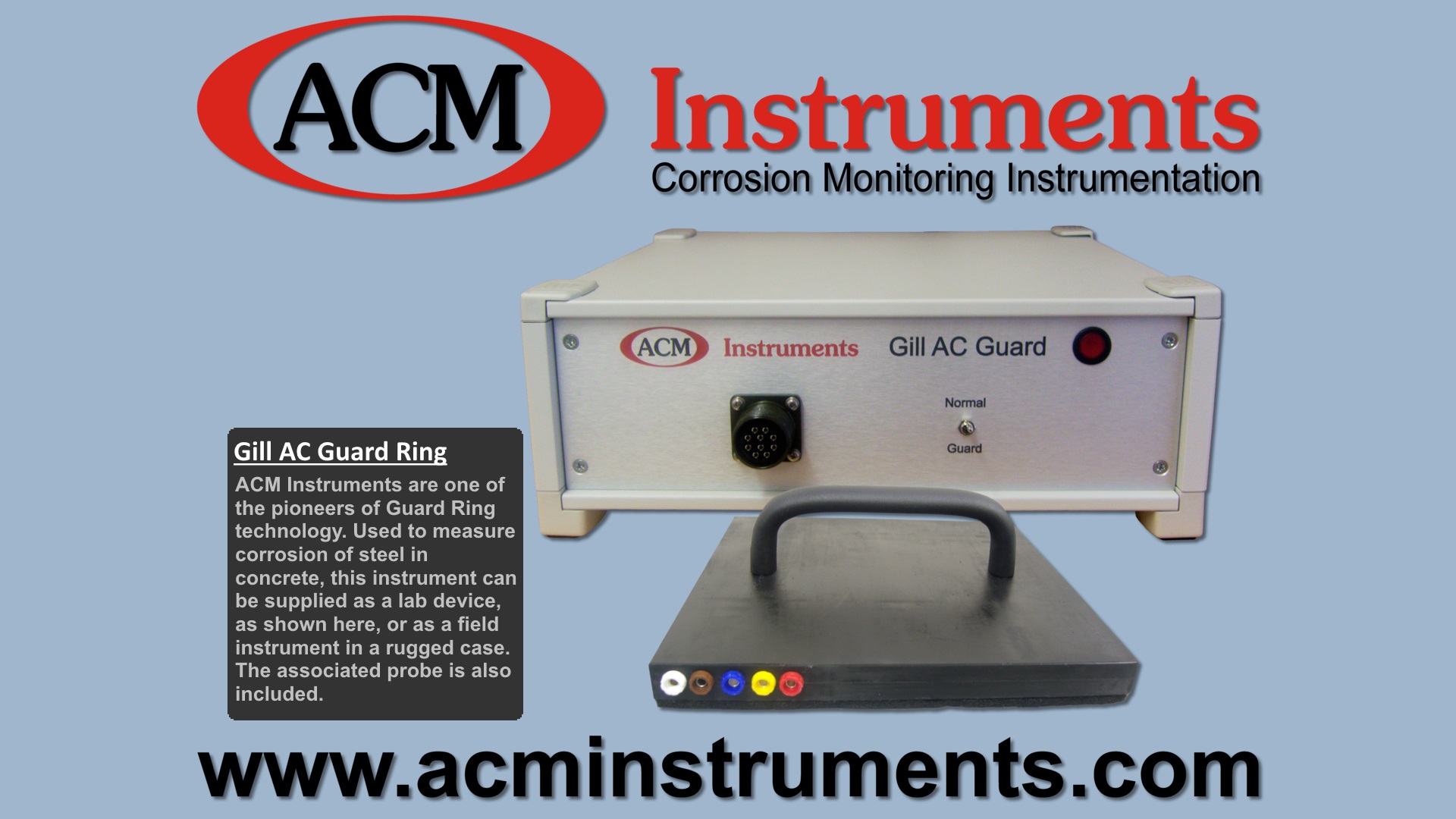

ACM Instruments are one of the pioneers of Guard Ring technology. Used to measure corrosion of steel in concrete, this instrument can be supplied as a lab device, as shown here, or as a field instrument in a rugged case. The associated probe is also included.

Click Gill AC Guard for more information.

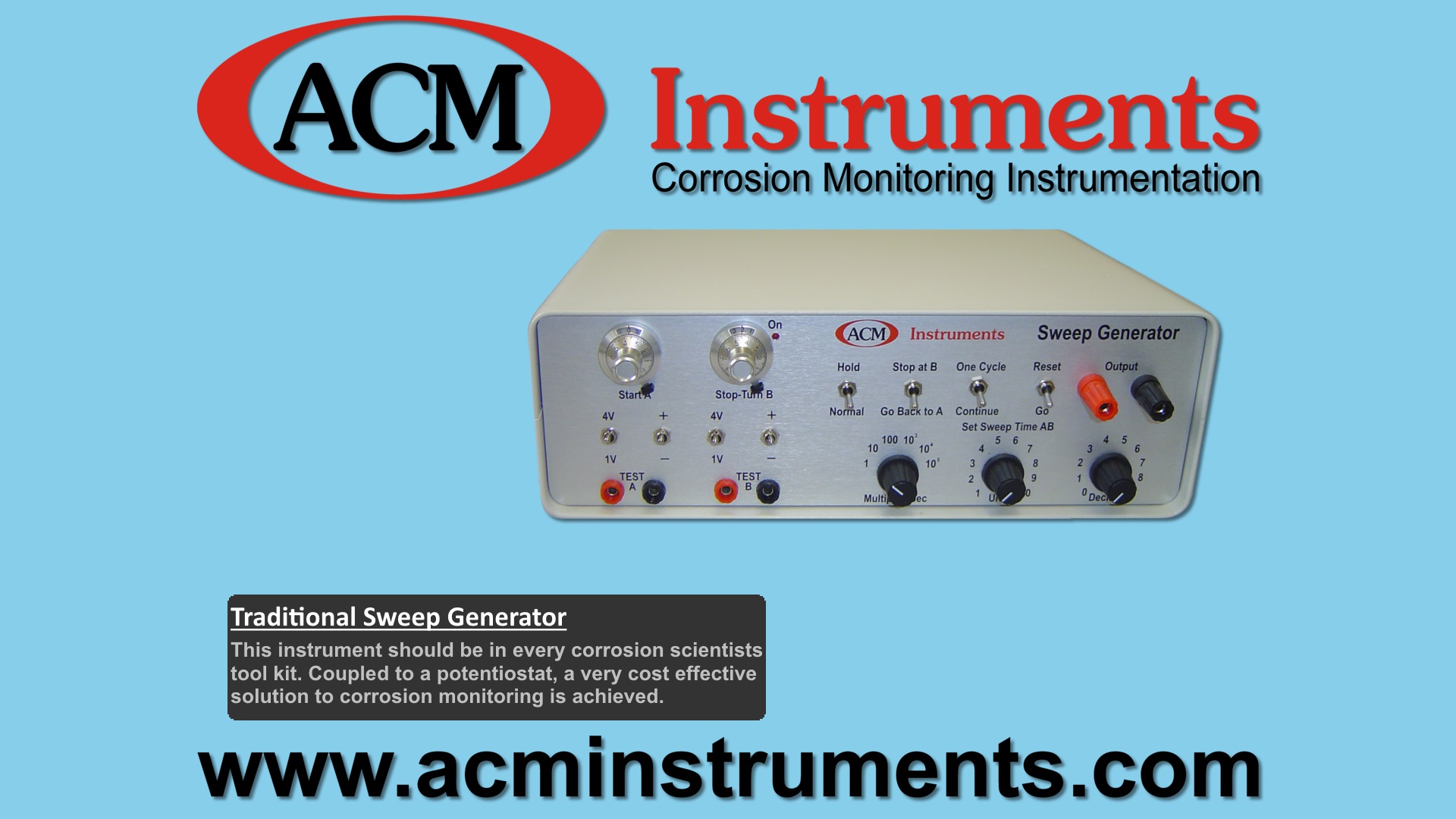

This instrument should be in every corrosion scientists tool kit. Coupled to a potentiostat, a very cost effective solution to corrosion monitoring is achieved.

Click Traditional Sweep Generator for more information.

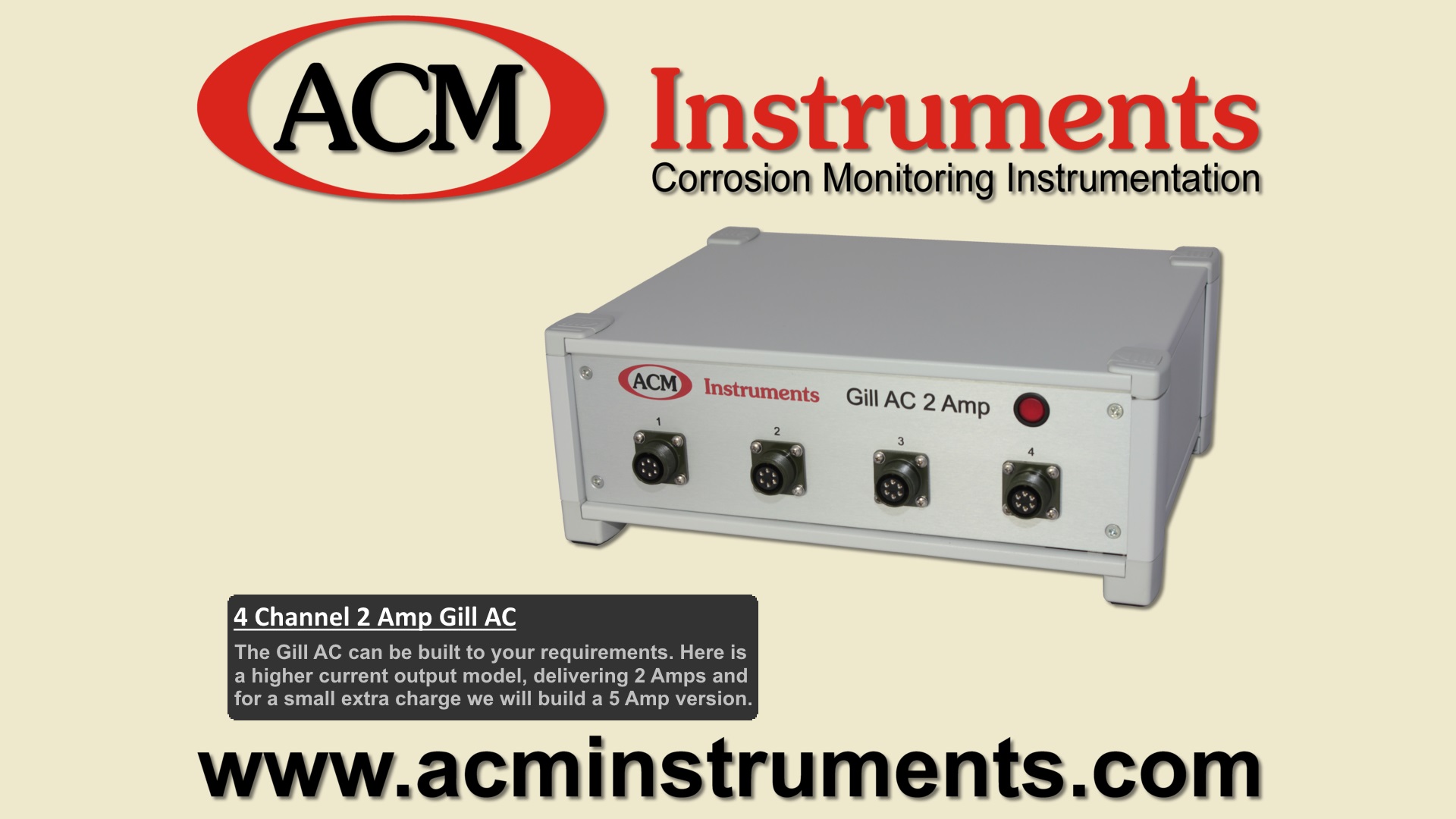

The Gill AC can be built to your requirements. Here is a higher current output model, delivering 2 Amps and for a small extra charge we will build a 5 Amp version.

Click Gill AC for more information.

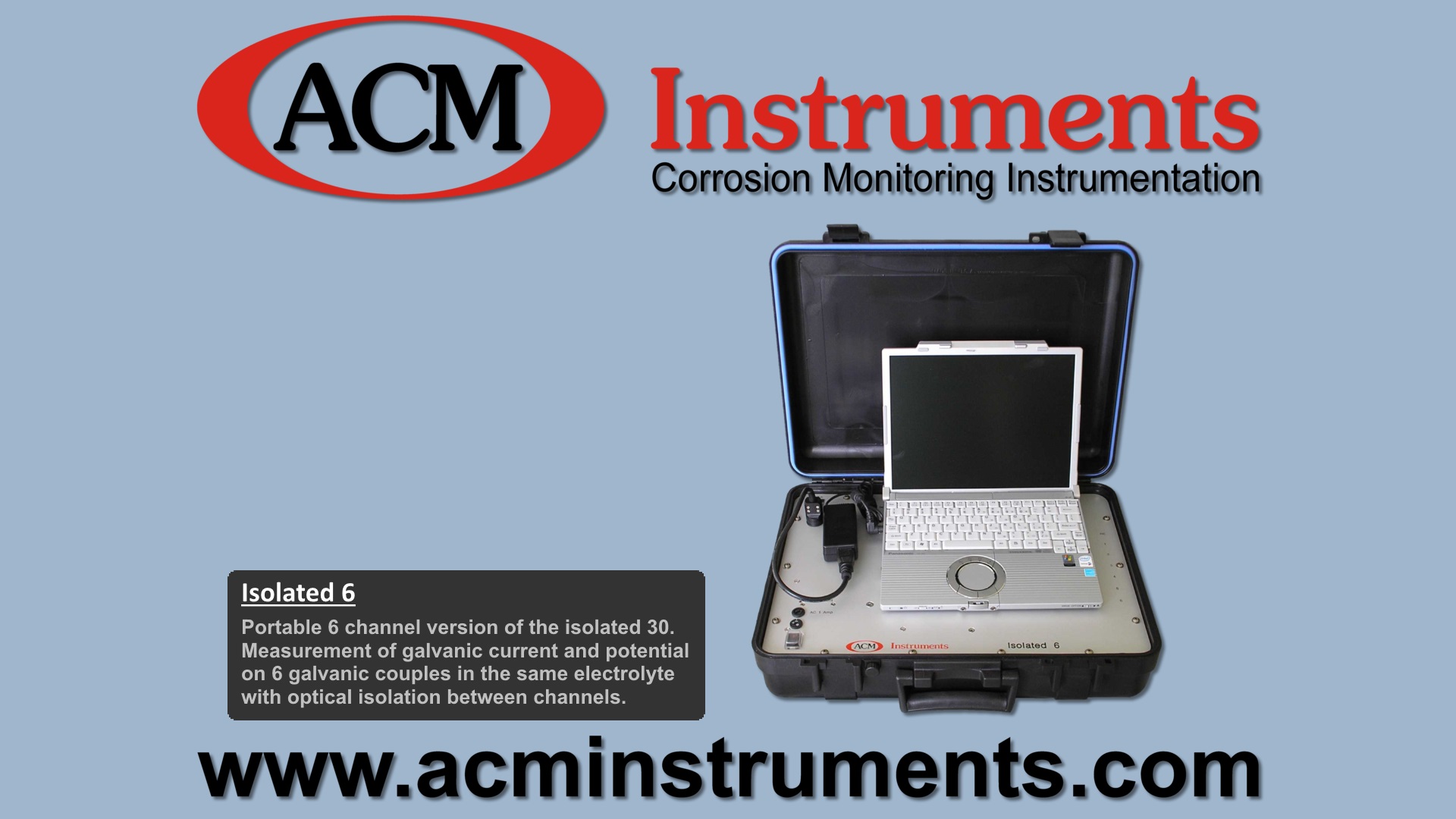

Portable 6 channel version of the Isolated 30. Measurement of galvanic current and potential on 6 galvanic couples in the same electrolyte with optical isolation between channels.

Click Isolated 6 for more information.

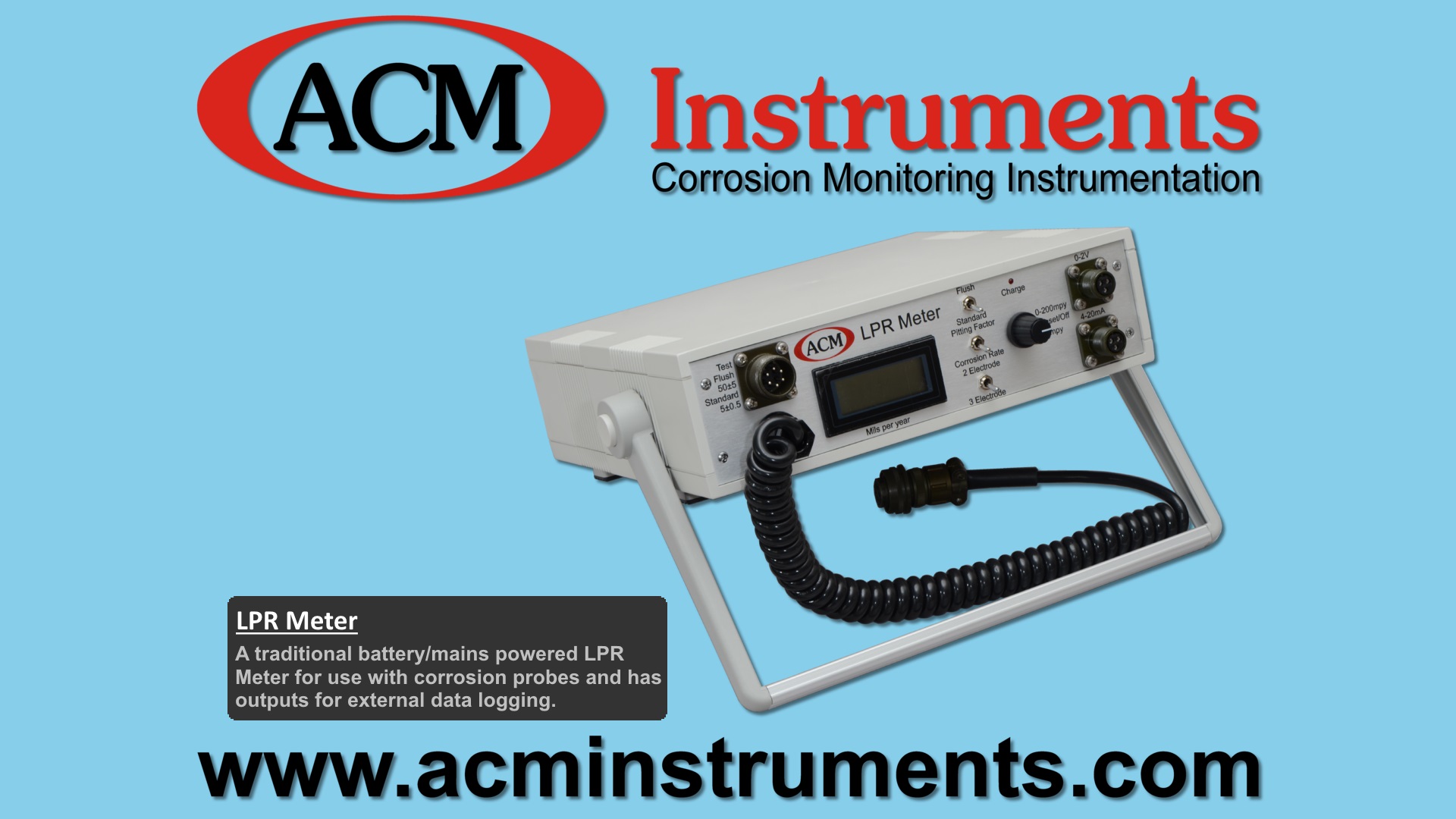

A traditional battery/mains powered LPR Meter for use with corrosion probes and has outputs for external data logging.

Click LPR Meter for more information.

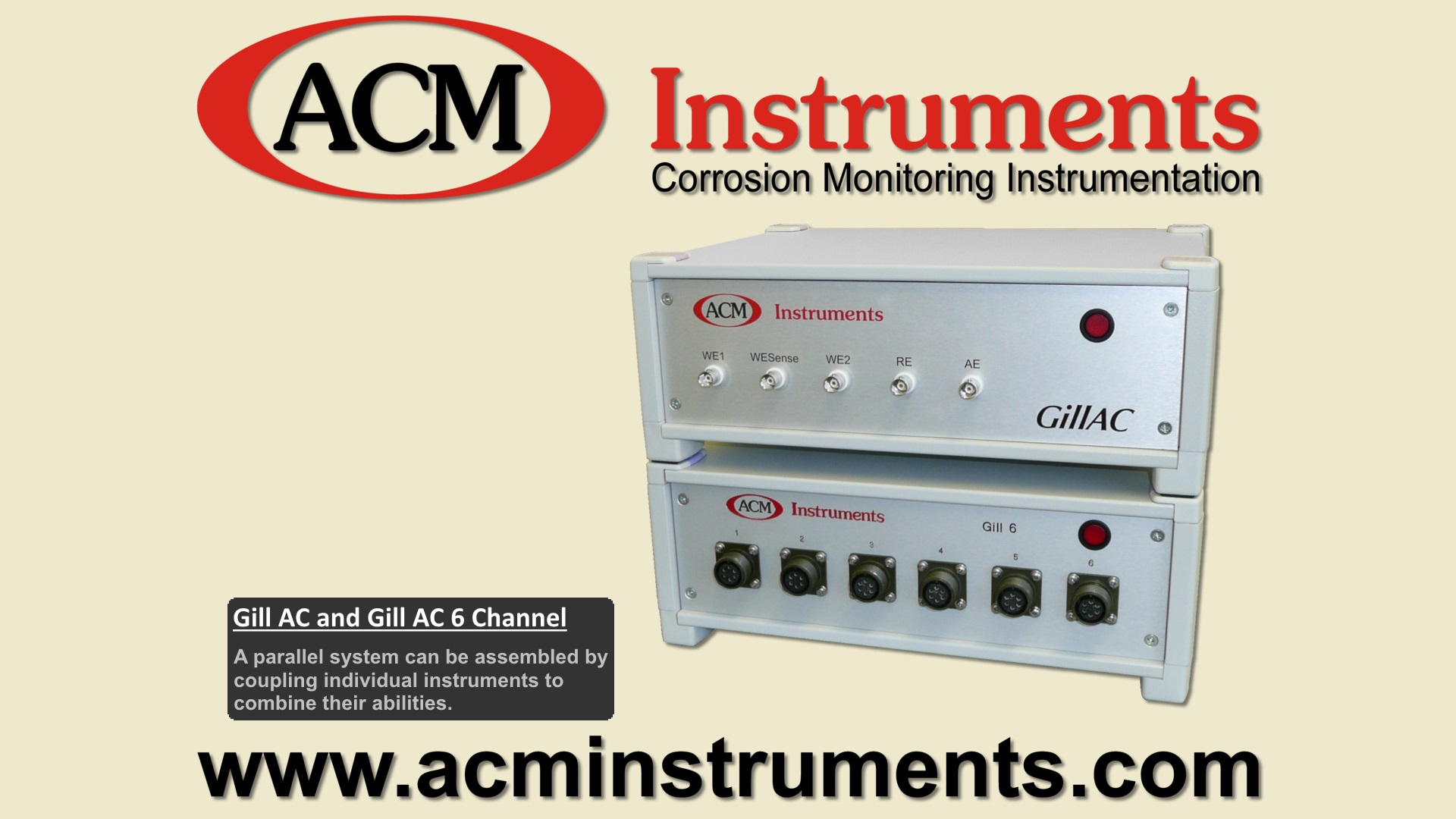

A parallel system can be assembled by coupling individual instruments to combine their abilities.

Click Gill AC or Parallel Systems for more information.

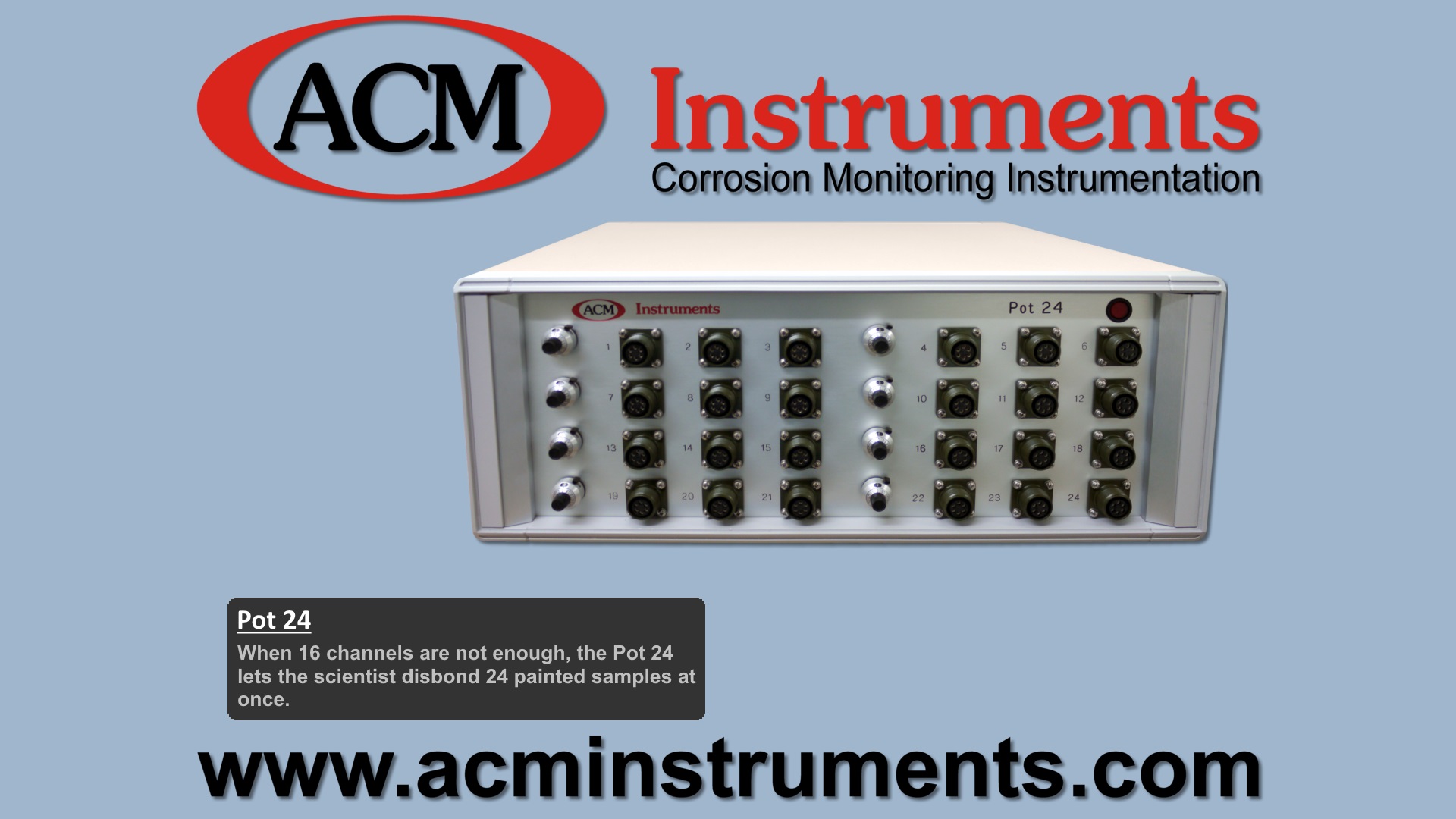

When 16 channels are not enough, the Pot 24 lets the scientist disbond 24 painted samples at once.

Click Pot 24 for more information.

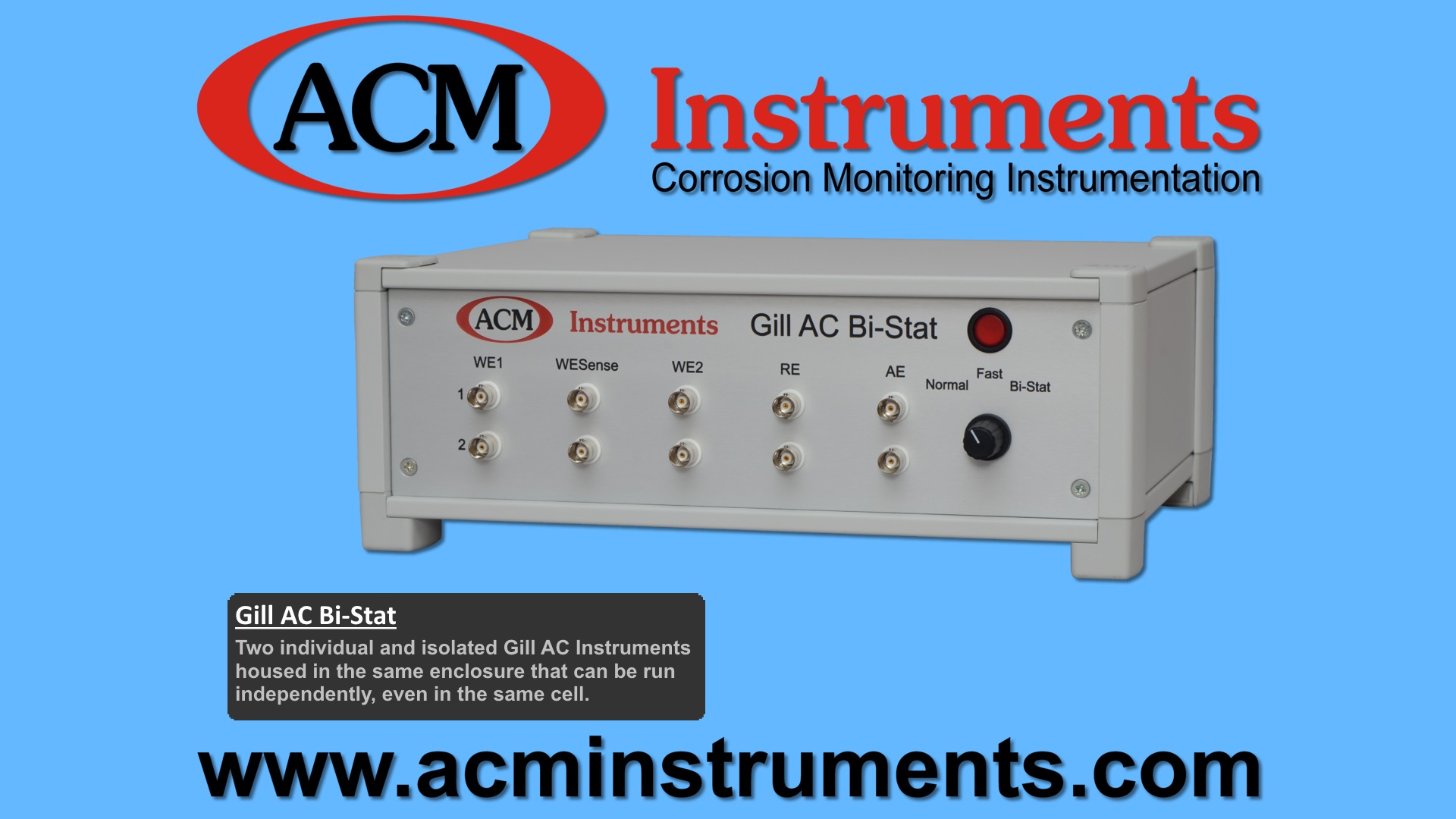

Two individual and isolated Gill AC instruments housed in the same enclosure that can be run independently even in the same cell.

Click Gill AC Bi-Stat for more information.
